Traces

You already trace your services, and one hole is left: the time spent before them.

[ browser ................................ ] 4.2 s
     [ orders-api ...................... ]   3.9 s
         [ payment-api ................ ]    3.8 s
     ^^^^
     300 ms nobody can explain

Those 300 ms are the gateway's: picking the route, checking access, applying the filters, reaching the upstream. Nobody else in the cluster can measure them, and a gap in a trace is where a discussion between two teams begins. Meerkat declares itself in it:

[ browser ................................ ] 4.2 s
  [ meerkat .............................. ] 4.1 s
      route=orders   access=session, role orders_write
      [ orders-api ...................... ]   3.9 s
          [ payment-api ................ ]    3.8 s

Traces and metrics do not replace each other

You never alert on a trace, and you never diagnose one case from a counter.

With nothing turned on

traceparent, tracestate and baggage cross the gateway intact: an installation that already traces its services keeps its whole trace.

And every request gets an identifier, whether anything brought one or not. It comes back to you three ways:

response header      Meerkat-Trace-Id: 4bf92f3577b34da6a3ce929d0e0e4736
in the log           {"type":"access","trace_id":"4bf92f35...", ...}
in the page footer   discreet, under the branding, selectable

That is what lets your support start from an identifier read off a screen, and it is the key that joins a line of the access log to your service's business audit. It exists on 100% of requests and lives as long as your logs - a trace, by contrast, is sampled and kept a few days.

An identifier opened here travels with the sampling bit at 00, meaning "here is the name of this journey, nobody is expected to report it": with no export turned on you will see the identifier everywhere and no trace in your backend, which is the expected behaviour.

Exporting to your collector

The export speaks OTLP, not a product: the address can be any OTLP endpoint. We recommend an OpenTelemetry Collector. It takes every signal at one address and sends each where it belongs: traces to Tempo, metrics to Prometheus, logs and audit to Loki. It also samples complete traces (tail sampling), so the gateway can record 100% and let it choose.

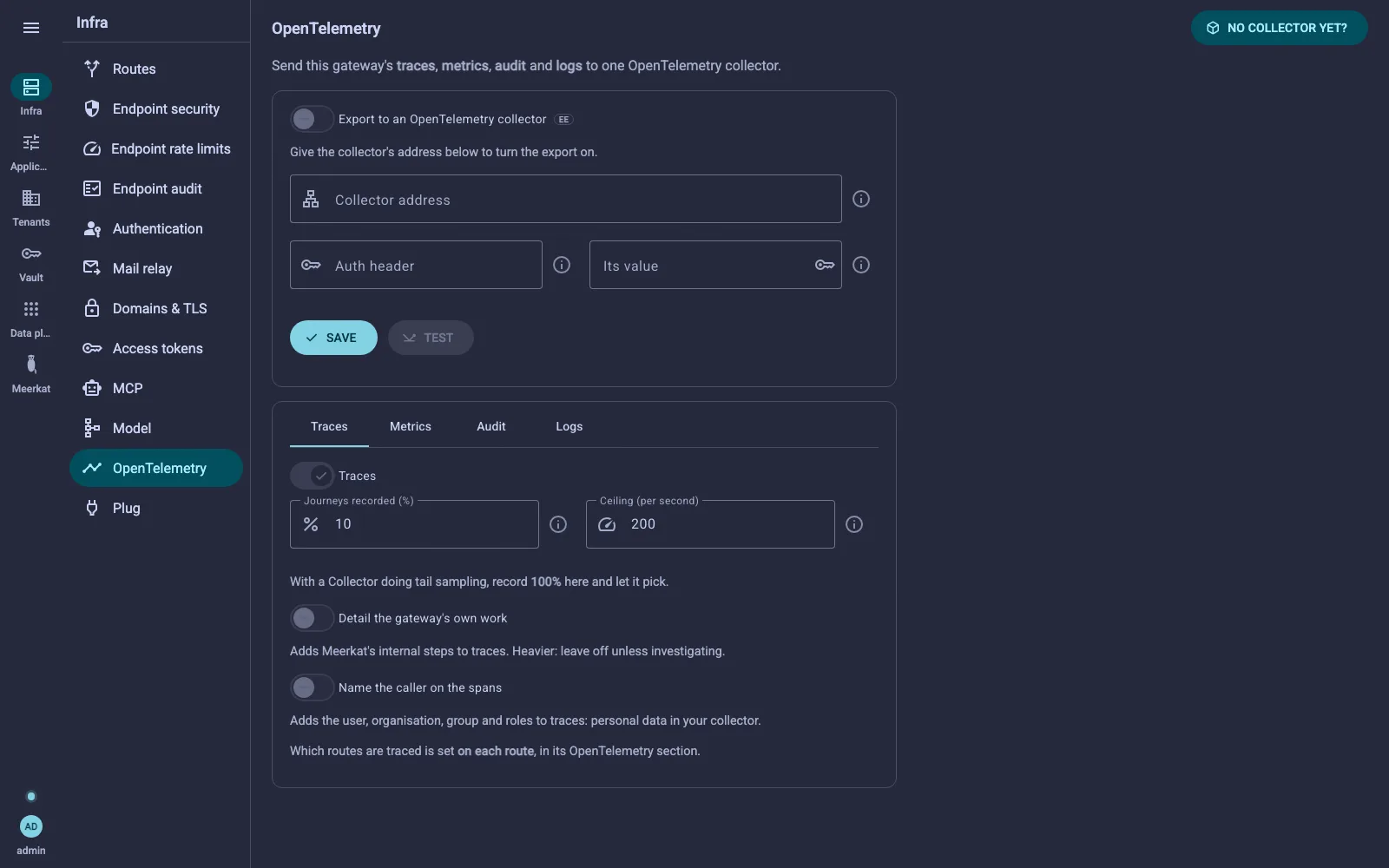

The setting is under Infra, OpenTelemetry. It applies live, on every node.

A master switch, Export to an OpenTelemetry collector, turns the export on. Four tabs then say what is sent:

The Logs tab has three modes (see logs):

• Not sent: the logs stay in their usual format.
• Written for an agent: the logs are written as OpenTelemetry JSON on stdout. A Collector on each node (a DaemonSet) reads them. Works with the export off, in both editions.
• Pushed to the collector: the logs are sent over OTLP to the collector address, for nodes with no agent. Needs the export (Enterprise).

The Test button posts an empty batch to /v1/traces before you save. It exercises the whole path: name resolution, network, TLS, credential. No trace is written. It refuses a web page: the address of a collector's UI answers 200 to anything, but it is not the OTLP port. With metrics on, it also asks /v1/metrics, and says when a backend takes only traces.

A trace is not a counter. At 100%, a day at 400 req/s is thirty-five million traces to bill and index. At 10% the latency profile is the same, and you find one request by its trace_id when it was drawn. What you want complete is the metrics and the access log: they stay at 100%.

Meerkat emits two spans: a SERVER span for the whole crossing, up to the response being written, and inside it a CLIENT span around the call to your service. The gap between the two is the gateway's own time. The route and the access verdict are attributes, not spans.

A collector that is down never slows the traffic: spans leave from a bounded queue, and what does not fit is dropped.

No collector yet?

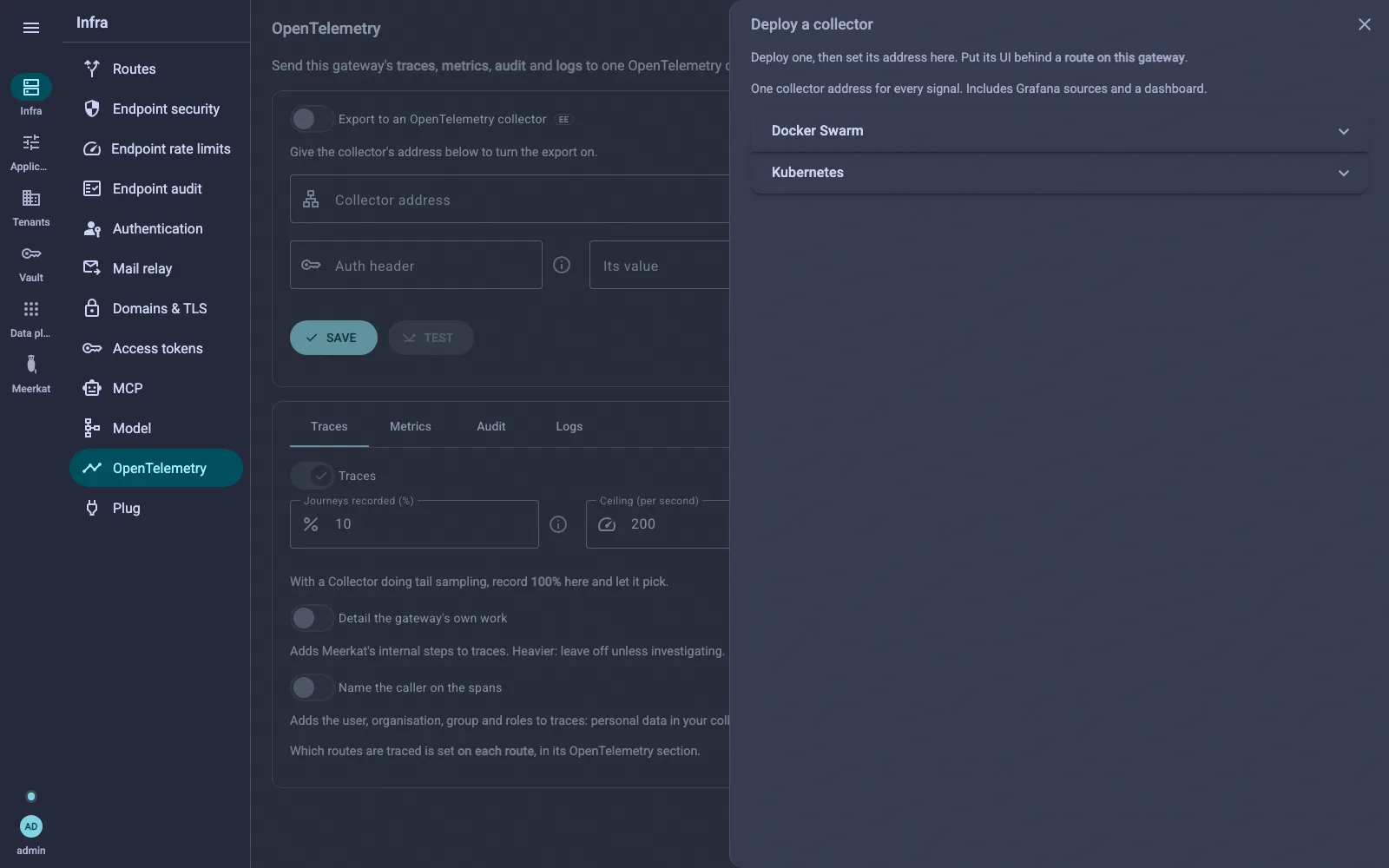

No collector yet? on the OpenTelemetry page opens the files to deploy the OpenTelemetry Collector in two tiers, for Docker Swarm or Kubernetes:

• an agent on every node (a DaemonSet on Kubernetes, a global service on Swarm): the one address every service sends to, opentelemetry:4318, and the reader of the containers' stdout in OpenTelemetry JSON. It writes the metrics to Prometheus and the logs and audit to Loki, and passes the traces only to the gateway. On Kubernetes its Service keeps each pod on the agent of its own node (internalTrafficPolicy: Local);
• a gateway, which receives the traces from every agent, every span of a trace on the same replica (the agents route by trace id, through the load balancing exporter). Once a trace is complete it keeps it or not - tail sampling: every error, every slow one, a share of the rest - and writes it into Tempo;
• two Grafana companion files: the datasources (Prometheus, Tempo, Loki) and a dashboard for the metrics.

Why two tiers: the spans of one trace are made on several nodes, and an agent sees only its own, so it cannot decide which traces to keep. With the gateway deciding, record 100% on this page and let it pick.

Starting the trace at the click

A UI route's second switch, Start the trace from the UI, injects the OpenTelemetry bundle into that application's pages.

What it shows you and the gateway never will: the network in front of it, the browser's own queue, the render - and above all the calls that never reach you. A DNS lookup that fails, a CORS refusal, a device offline: your dashboards are green and support is taking calls.

Three things to know:

• The script is served by Meerkat, never by a CDN: an installation cut off from the Internet works, and no third party sees your users.
• A third party never receives a traceparent: the page carries it only to the addresses the gateway serves.
• Your collector stays private: the page's spans come back through the gateway, which relays them with a credential no page ever sees.

Choosing which routes are traced

Tracing is decided route by route, in the route editor, section OpenTelemetry, with two switches. A request that no route answers - a 404 - is never traced: no route said yes, and such a request is nobody's journey. It stays counted in the metrics and written in the access log.

Include this route in OpenTelemetry (on by default): the gateway records its own spans for what that route answers, and the route has its own series among the metrics pushed to the collector. Off, the route produces nothing at all - no crossing, no call out, no injected bundle, no series of its own - though it still counts in the gateway's totals (meerkat.gateway.requests), and the context the caller sent travels on untouched, without the gateway naming itself as its parent.

Start the trace from the UI (off by default, and available only when the first is on and the route is a UI one): the OpenTelemetry bundle is injected into that application's pages, and the journey begins at the click rather than at the gateway.

• The first alone: span 00 is Meerkat's, and your service is its child.
• Both: span 00 is the page's, and Meerkat's crossing becomes the child of the click.

That is what keeps the backend readable. A gateway sees everything cross it, and most of what it sees is nobody's journey: the RabbitMQ admin an operator keeps open in a tab, the Jaeger a colleague is reading, a health probe every ten seconds. Tick the applications worth following, and the operational interfaces served beside them cost nothing.

The other reason to turn a route off is an application that already carries its own agent: two agents on one page produce two traces for one click, and neither is the whole story.

What it does not change: the traceparent is still generated and still in the access log - that is the key joining a line of ours to your service's own audit, and it is not a trace.

Seeing the gateway's own work

By default a crossing is two spans: entering Meerkat, and calling your service. The gap between them is the gateway's own time, and it is one number.

The Detail the gateway's own work switch (Infra, OpenTelemetry) divides it: every recorded crossing then carries its steps - the identity handed to your service, with who the caller is and the token's signature, and every query to the store, named SELECT users with its text (the placeholders, never the values).

It is off by default, on purpose. It adds no trace: it deepens the ones already sampled, so the rate and the ceiling keep their meaning - but each weighs more in your collector. Turn it on while you look at where the gateway's time goes, then off again.

Who made the call

A trace answers "what was slow"; a support ticket asks "for whom". The Name the caller on the spans switch (Infra, OpenTelemetry) puts the signed-in caller on the trace:

An anonymous call carries nothing.

Once per journey, never twice. A journey that starts in a page carries the person on the browser's spans; the gateway's own span on that journey stays silent. Any other journey - a backend, a script, a page without the bundle - carries it on the gateway's span. The bundle marks the journeys it opens with meerkat=b in tracestate, which is how the gateway tells them apart. A trace backend's search still finds the whole trace from any of these attributes: a trace matches as soon as one of its spans does.

It is off by default: a person in a trace is personal data going to a collector somebody else may run.

The browser's spans are stamped by the gateway, at the relay that forwards them to your collector: the page is never told who is reading it, and an attribute a page sets under one of these names is replaced by the gateway's answer rather than believed.

What is missing

• tracestate and baggage cross through, but the gateway does not declare itself in them.
• No clickable link between a line of the audit trail and its trace.
• A response that never ends - SSE, WebSocket - closes its span at establishment: the rest is counted, not traced.
