Endpoint security and rate limits
Infra > Endpoint security, Infra > Endpoint rate limits and Infra > Endpoint audit are three entries onto one inventory: the operations the gateway reads from a route's OpenAPI spec. Security asks who may call this, rate limits ask how much, audit asks which calls to record (Enterprise, see auditing a route's operations). This page covers the first two.
Before you start
The screen only lists routes that expose an OpenAPI spec. If none does, it says so and points you at Routes: declare the spec on the route's Target section, either published by the service or deposited as a file, then come back.
What you do here
- Pick the route in the selector at the top. Its title, format and version appear beside it. Arriving from a route's editor preselects it.
- Find the operation. The table lists method, path, tags and description. The method and tag column headers are filters; the path column sorts. The footer counts what is covered: N operations, M secured (or M bounded).
- Click the row. The operation opens in a drawer, with its operation id and the section this page is about.
- Write the rule. There is no Save button: the footer says Saving... then All changes saved.
On the security page
The drawer carries one switch, Override the route config.
- Left alone, the operation says Inherits the route config, and the sentence links to the route's own Security section. An operation you never touch keeps being secured by the backend itself.
- Turned on, you get the same access editor the route uses. Two axes, both of which must be satisfied: the belonging level, and a role filter evaluated in the caller's active organisation.
| Level | What it requires |
|---|---|
| Delegated | Nothing. Everyone through, signed in or not; the service decides |
| Signed in | Any account, including one that belongs to no organisation yet |
| In an organisation | An organisation must be active on the session |
| In one of these organisations | The active organisation must be one of those named |
| Nobody | Refused before the service is called |

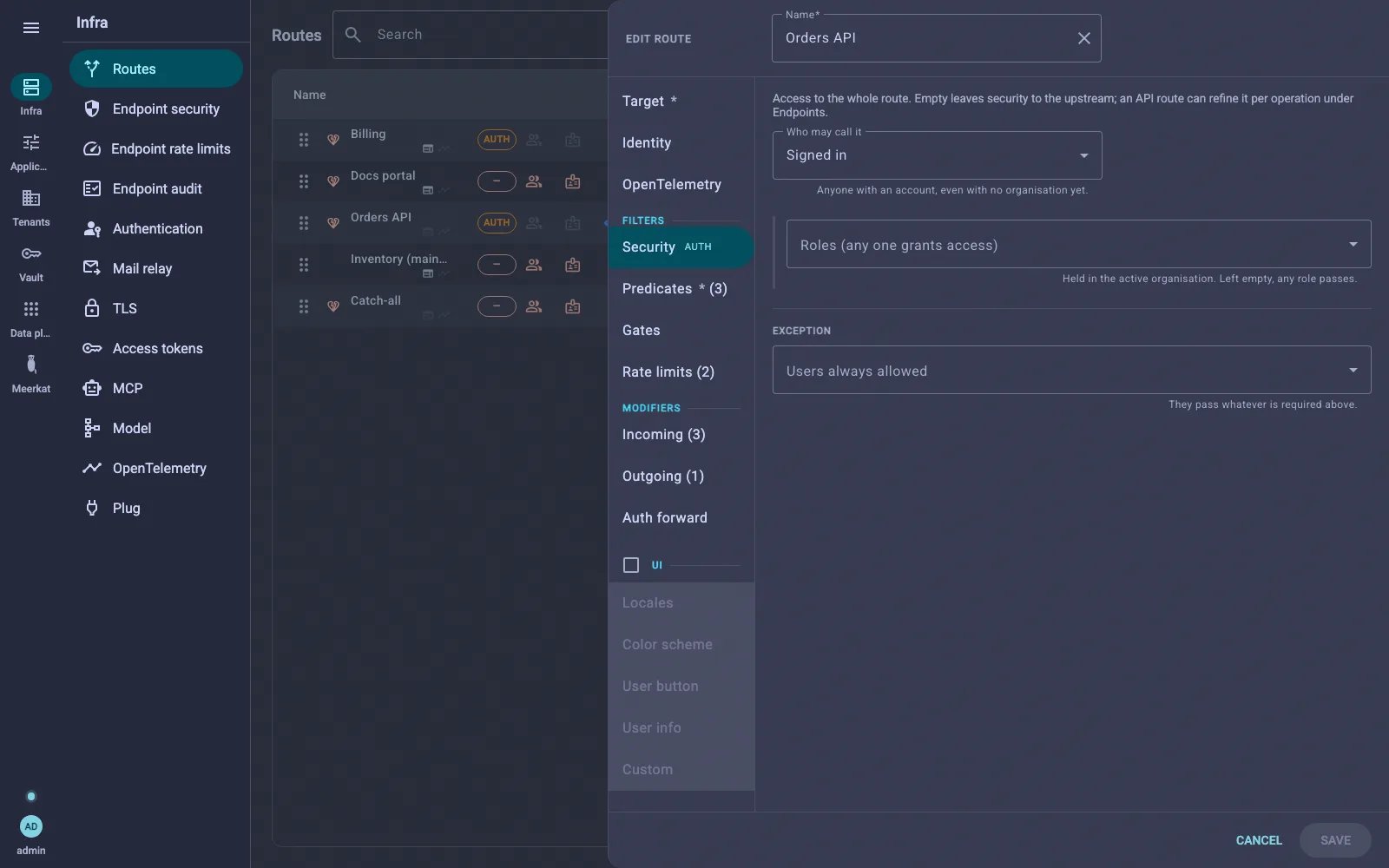

The same editor, here on the Orders API route: the level, the roles (any one grants access, held in the active organisation), and the exception for named users. An operation's drawer shows exactly this once the override is on.
Named users are an exception, not a level: whoever is listed passes whatever the level requires. That is how a service account or a support login gets through a rule written for everyone else.

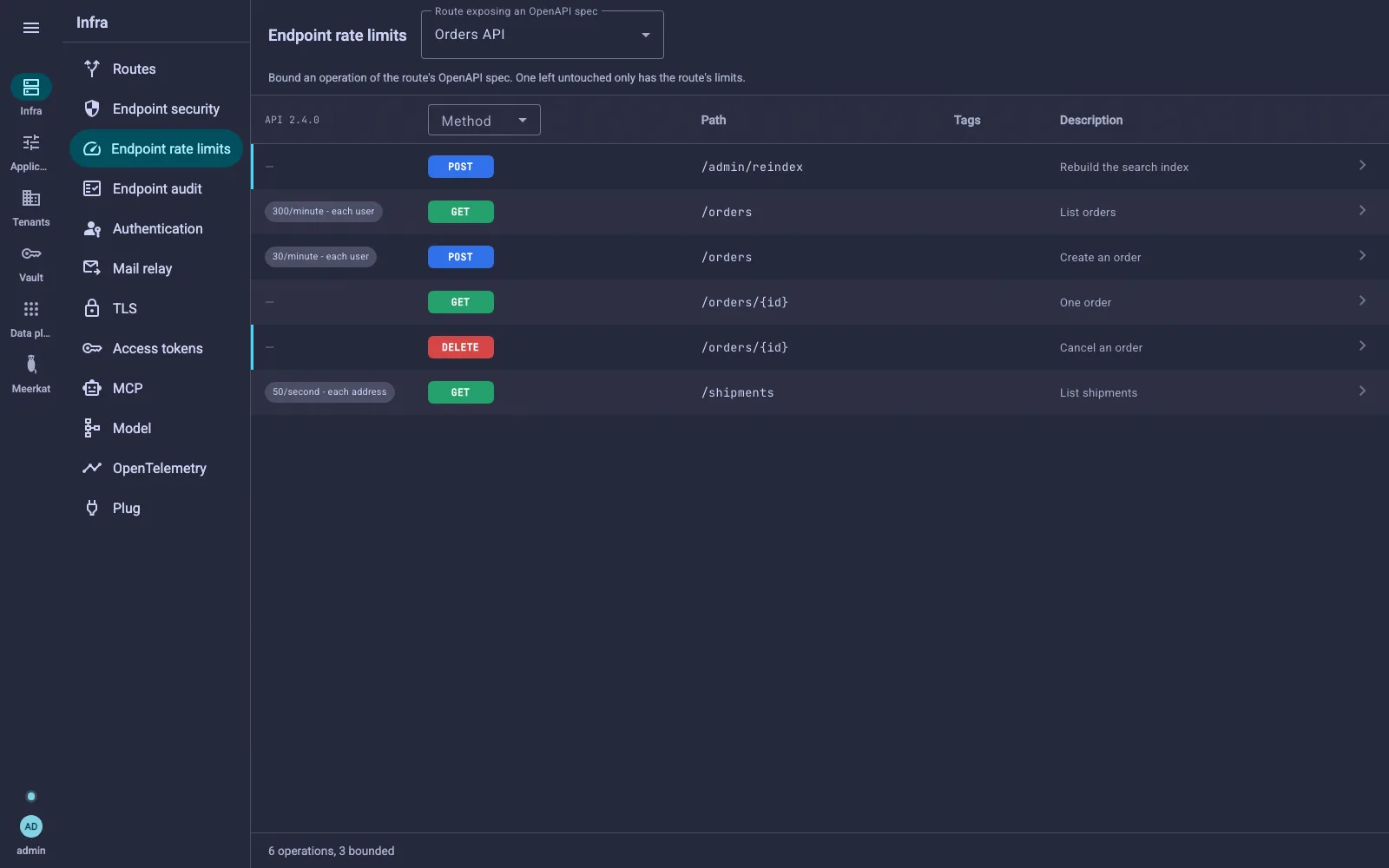

On the rate limits page
The drawer holds the operation's own bounds, on top of the route's, which still apply. A bound is a counter, and you choose what it is keyed on:
| Key | One budget per |
|---|---|
| The whole operation | everything it carries, whoever is calling |
| Each user | signed-in account (anonymous callers are not covered) |
| Each API token | token, so an integration is bounded without bounding its owner |
| Each organisation | organisation - a quota sold to a customer |
| Each address | client address, the only key an anonymous caller has |
The second half of a rule says to whom it applies, and it is the same access shape as above: a role becomes a pricing tier without a new concept. Several bounds are true at once, and the first one exceeded answers 429.
Write these for the few operations that need one. A bound on every operation of a large inventory is a counter per operation and per caller.
Traps
- A spec published by the service follows the service. When the service renames a path, the rule written against the old one has nothing left to attach to. A deposited file is a snapshot and does not move under you.
- Untouched means unguarded by Meerkat, not unguarded: the backend is still in charge. Deciding to centralise access control means overriding deliberately, operation by operation.
- The route's own rule is not on this screen. It takes part in choosing the route at all, so it lives with the route; the Inherits sentence is the way there.
- An address key is the attacker's choice of budget. It is read from the connection, never from a forwarded header, but it still means one budget per address.
See also Routes for the route-wide rule, and Roles for the catalogue these rules name.
