Meerkat as an OpenID provider

When to use it

A route has three other ways to tell its service who is calling, and they are simpler: nothing to set up in the application beyond trusting the gateway.

Recipes for common applications, one per mechanism, are in Connecting an application.

How a sign-in goes

1. The person opens the application through its route. The gateway signs them in as it always does: the application is not involved.
2. The application sends the browser to Meerkat's authorize endpoint with its client id.
3. Meerkat takes the routes bound to that client, in routing order, and the first whose access rule lets the person in decides. It sends a code back to the application, at the address it asked for, provided its routes serve it. No page, no consent screen.
4. The application exchanges the code for an ID token, an access token and a refresh token: from its server, with its secret, or from its browser code with PKCE.
5. At every refresh, the route is chosen again, with who the person is now. A role removed, an organisation left, a route turned off: each applies at the next refresh, not at the next sign-out.

There is no consent screen because the clients are declared by an administrator: whoever declared the application already decided it may know who signs in to it.

Before anything: a public address

An application compares the issuer of its tokens with the one its provider's discovery gave it, so the two must be one address, the one its users reach. The issuer is not typed: it is the application plane's public name, declared in Domains & TLS, Application tab (Domains and TLS), written https://<name> - whoever serves it, the gateway or a proxy in front. A name on this machine (localhost) gives http://localhost:<data-plane port>, for a developer's gateway.

• One public name: it is the issuer.
• Several: the OIDC / JWT drawer offers them in Public address; until one is chosen, the first. A name removed takes the choice with it, and the issuer moves to the first that is left.
• None: the tokens say meerkat, the provider stays off - every endpoint answers with the sentence that says where to declare a name - and the drawer links to the Application tab.

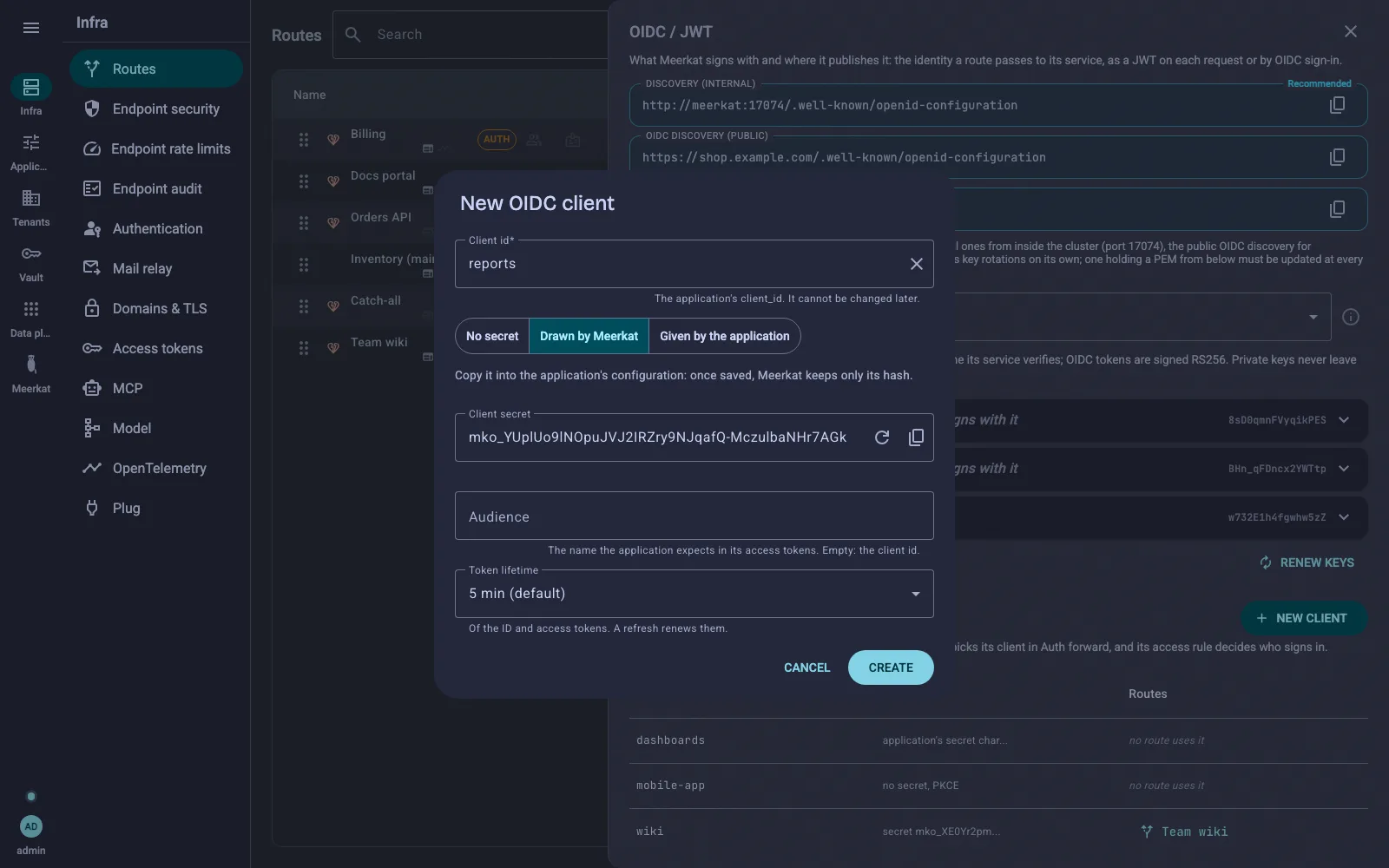

Declare the client

Infra > Routes, the OIDC / JWT button beside Global. Under the keys, OIDC clients, then New client:

A client declares no return address: the routes bound to it say where the application lives (Where the code may go).

The client secret

One field under the three choices, whatever the choice:

Whichever it is, the gateway keeps only its sha256 and never shows it again: the list shows its first characters, mko_... for a drawn one, application's secret and four characters for the other. The minimum length is there because the sha256 travels in an exported configuration, and a short secret is found back from it.

Editing a client shows the start of its secret and keeps it as it is. Draw another or paste another and the hint says it: the current secret stops working when you save, and the application signs nobody in until it carries the new one. Cancel leaves it working.

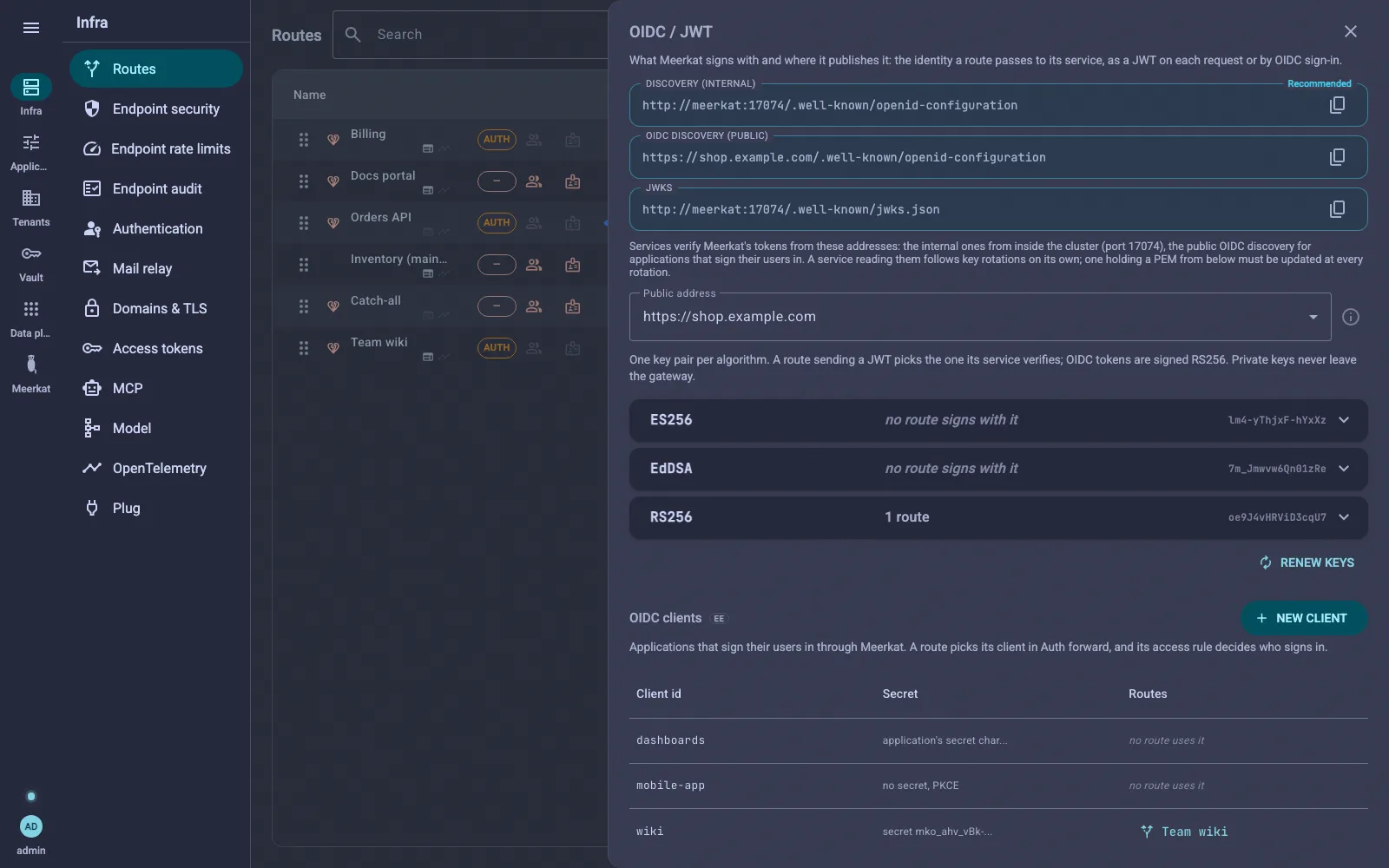

Each row of the list names the routes that use the client; a click opens one on its Auth forward section. A warning mark says when one of them covers a whole host. The key icon opens the client on a new secret drawn by Meerkat, in force once saved. A client a route still uses cannot be deleted, and the refusal names the routes.

The clients travel in a configuration, the secret as its sha256 only (secretHash): imported on another gateway, a client keeps the same secret. A confidential client imported without one has no secret yet, and its row says so: the key icon draws the first.

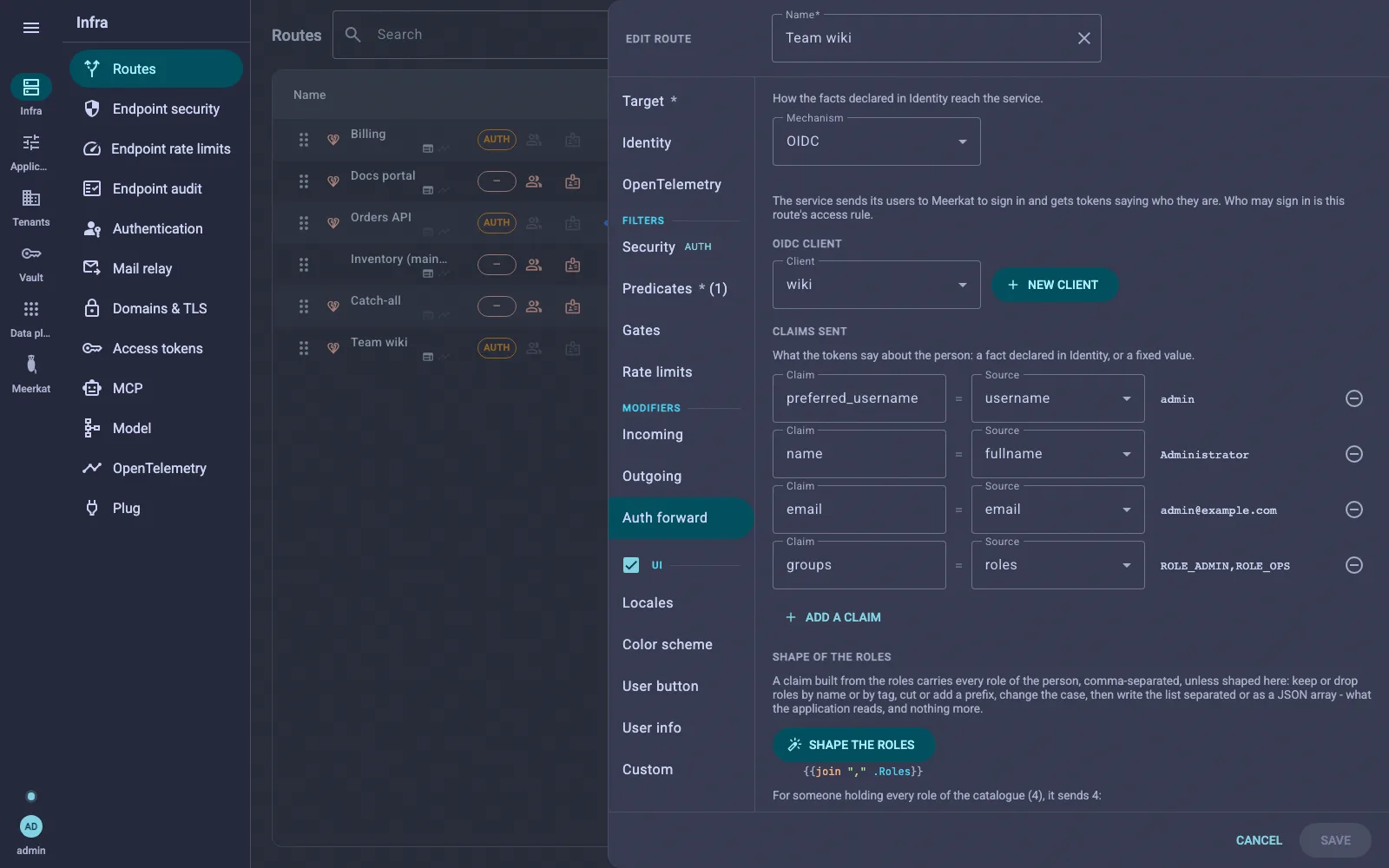

Bind a route to it

In the route editor, Auth forward, mechanism OIDC (the service signs in through Meerkat). Pick the Client - or make one there with New client - and fill Claims sent: what the tokens say about the person. Each claim is a name and a source:

• a fact that the route's Identity section declares: the username, the e-mail, the full name, the organisation, the roles... rendered as the JWT mechanism renders it, the roles through the expression Identity gives them;
• a fixed value, the same for everyone who signs in through this route.

A new setup starts with the names every OpenID library reads first, each kept only if Identity declares its fact: sub (the account id), preferred_username, email, name. A fact the person does not have is left out rather than sent empty.

The provider writes some claims itself, and they are refused by name: iss, aud, exp, iat, nbf, nonce, azp, auth_time, at_hash, jti, client_id, scope. sub is the exception: it defaults to the account id and may be set, for instance to a fixed value when an application should see one shared account.

The route still carries the application's traffic, as any route does. With OIDC it adds nothing to the requests and leaves Authorization untouched: that is where the application's own browser code sends its access token.

Where the code may go

With every sign-in the application names the address it wants the person back at (its redirect_uri), and the code goes there only if that address is the application's own. The application is served by the routes bound to its client, so those routes say where it lives, and nowhere else is accepted: an address is accepted when, for one enabled route bound to the client,

• its scheme and host are the gateway's public address (the issuer's), or a name of the route's host predicate (https, or the issuer's scheme), and
• its path is under the literal start of one of the route's path patterns, segment by segment: /rabbitmq/** accepts /rabbitmq/ and everything below it, never /rabbitmqx. A pattern stops at its first variable: /api/{tenant}/** accepts what is under /api.

The host of one route never goes with the path of another, and a disabled route accepts nothing. A query string is kept; a fragment, or a .. segment that would walk out of the path, is refused. An agent reads these places in list_oidc_clients (acceptedUnder), for instance https://apps.example.com/rabbitmq/.

An application served outside the gateway, or under a name no route of its client gives (a host predicate with a wildcard, *.example.com, names no address), cannot use the provider: put it behind a route.

The application's browser code may call the token and userinfo endpoints from the same origins: the gateway's public address and the routes' hosts.

Who may sign in: the route's access rule

The client says nothing about people. Who may sign in to the application is the access rule of the route bound to it, posed in Security like any other. Somebody it turns away gets the gateway's own answer: the organisation chooser when another organisation would let them in, otherwise the refusal page that names the rule.

Two levels of access

Two levels for one application - say administrators and readers - are two routes on the same paths with the same client, each with its own access rule and its own claims:

The first route that grants the person decides, exactly as routing does for requests: an administrator matches the first, everyone else falls through to the second. Since the choice is made again at every refresh, losing the role turns the next tokens into a reader's.

The addresses

The application is told one thing: the issuer. Everything else is in the discovery document. The top of the OIDC / JWT drawer gives the three well-known addresses to copy: Discovery (internal), OIDC discovery (public) - shown while the provider answers - and JWKS.

• The public discovery document is answered only while at least one client is declared. Until then the path belongs to the routes, like any other: an application behind a route may serve its own.
• The internal plane is for the application's server inside the cluster: it exchanges its codes and reads the keys there without going out through the public name and back. Its discovery document names the public authorize endpoint - the person's browser goes there - and the others at the address the server used. Once a certificate is placed on the internal plane, the same is served in HTTPS on 7443 (TLS). meerkat stands for the gateway's name inside the cluster; the OIDC / JWT drawer writes the real one.
• A library that starts from the issuer alone reads the public discovery: the server then has to reach the public address. A library that takes the document's address can be given the internal one.

Supported: response_type=code, PKCE S256, prompt=none, the grants authorization_code and refresh_token, client authentication client_secret_basic, client_secret_post or none, the scopes openid (required), profile and email, ID tokens signed RS256 with the gateway's keys. Other scopes are ignored rather than refused; the claims come from the route, whatever the scopes. Userinfo answers the access token's claims about the person.

Signing out

There is one session that counts, the gateway's, and one way to end it: the data plane's /logout, which the discovery document gives as end_session_endpoint. Point the application's sign-out at https://apps.example.com/logout.

• From a page of the same site - the application served by the gateway - a GET /logout signs out at once and lands on the sign-in page.
• From anywhere else, or when a browser fetches it ahead of a click, a page asks first, with a Sign out button.
• No address to come back to is read from the request: the person always lands on the sign-in page.

Ending the gateway session revokes the codes and refresh tokens born in it. An access token already issued stays valid until it expires, which is why the default lifetime is short. An application that ends only its own session leaves the person signed in at the gateway, and its next sign-in goes through without a page.

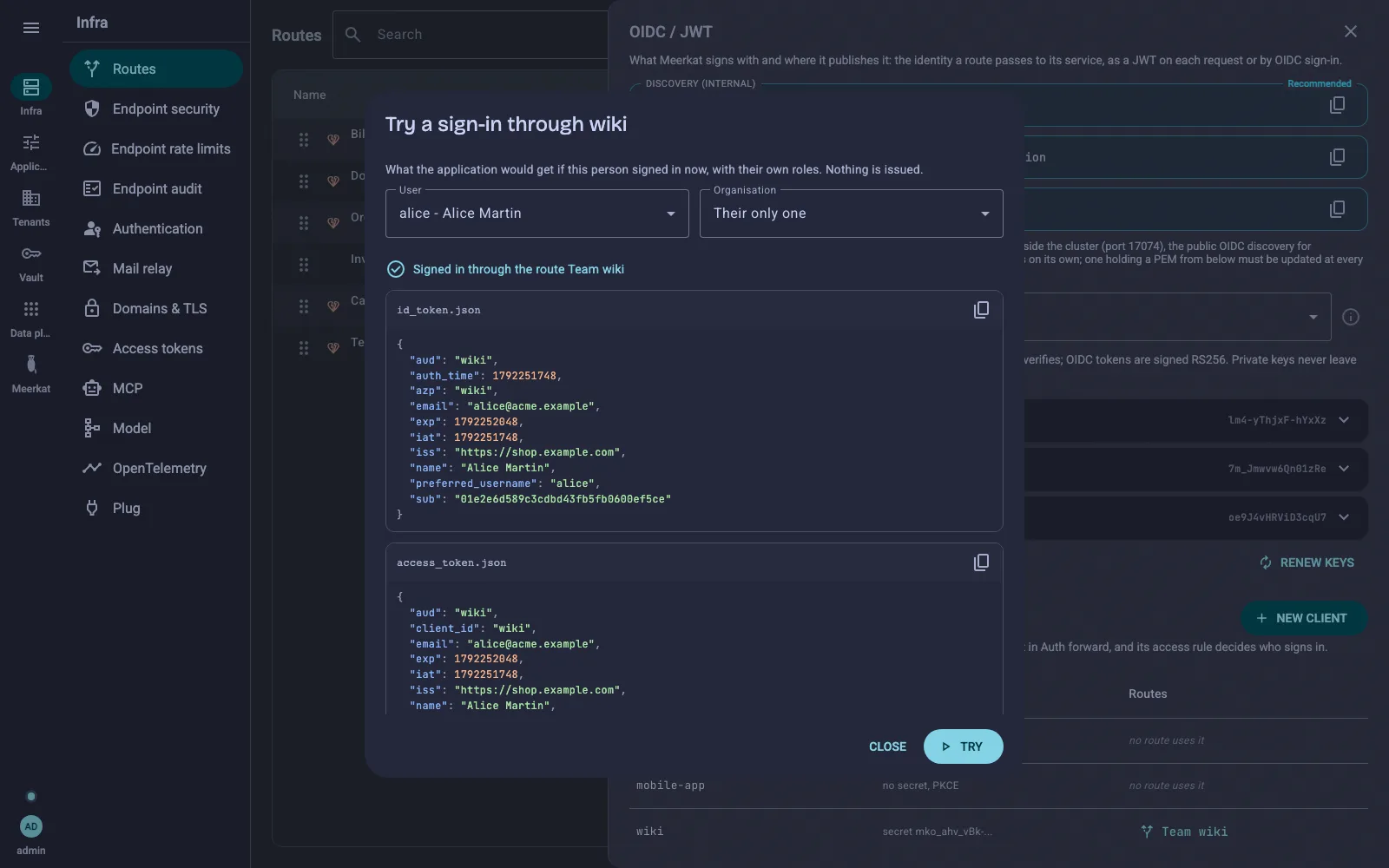

Try a sign-in

The arrow icon on a client's row tries a sign-in for anyone, without them and without issuing anything. Pick the person, and the organisation their session would be opened in (their only one by default):

• the route that lets them in - the first bound to the client, in routing order, whose rule does - or a refusal when none does;
• the routes whose rule turned them away;
• the claims of the ID token, the access token and userinfo, unsigned.

The claims are built by the code that builds the real tokens, with the person's own roles and facts and the route's role mapping: what you read is what the application receives. It answers "why does this person see nothing in the application" before anyone asks them to sign in again.

When it does not work

What the person or the application sees, and the line the gateway logs (OIDC sign-in refused, with the client and the reason, never a secret or a token):

Community and Enterprise

The control-plane API is /api/oidc/clients, every change audited with the secret redacted, and an agent has the matching tools (list_oidc_clients, save_oidc_client, regenerate_oidc_client_secret, delete_oidc_client, try_oidc_sign_in), and for the issuer and the keys (get_signing_keys, set_issuer, renew_signing_keys): an assistant can put an application behind the gateway end to end and prove it with a trial. Through the API or a tool, a confidential client given no secret has one drawn by the server and shown once in the answer; given one, the application's, it keeps it and sends nothing back.
