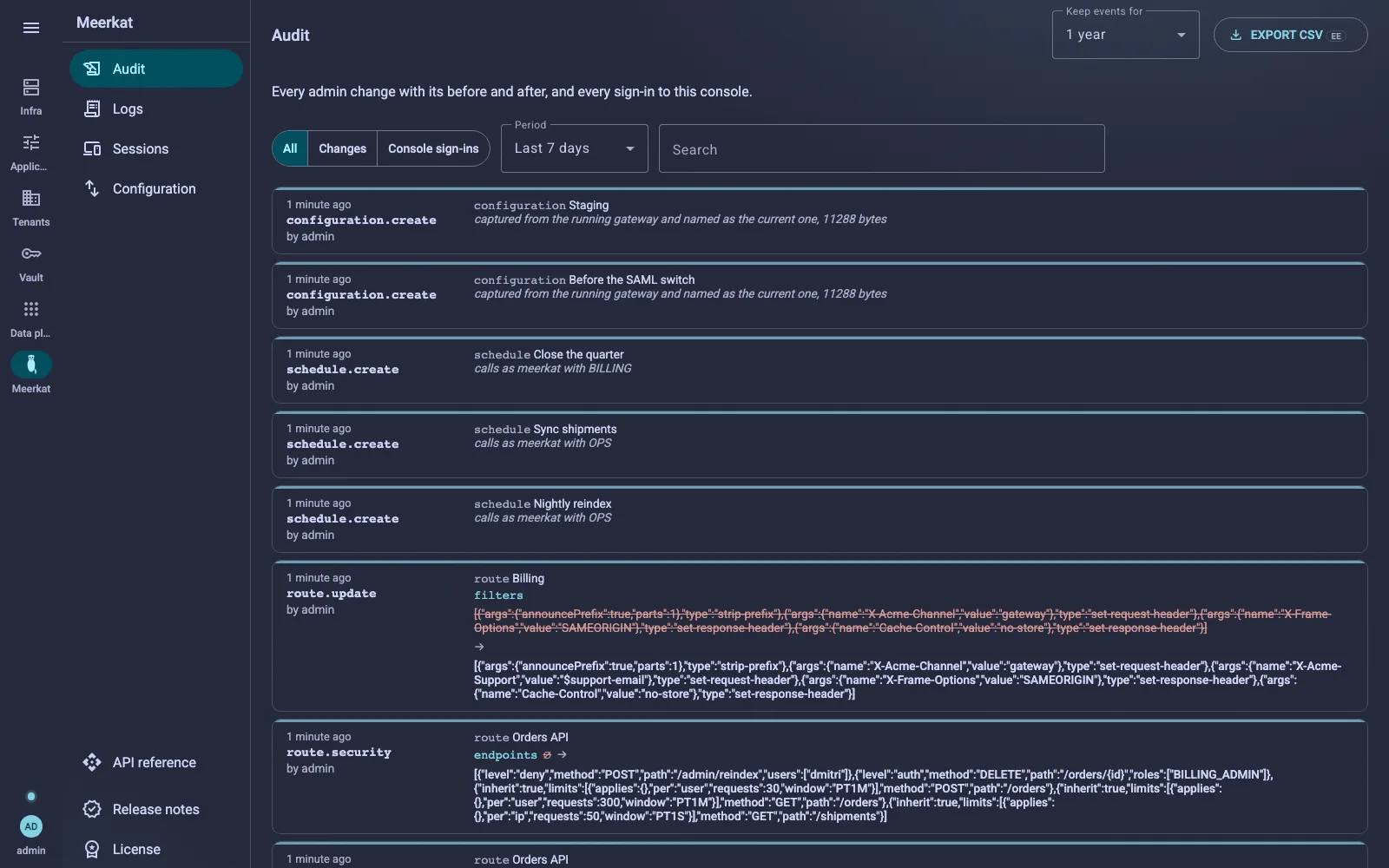

The audit trail
The trail has two halves, on one screen:
- The changes. Every mutation made through the control plane: who did it, what they touched, and - for an update - the exact fields that moved, before and after.
- The security of the accounts. Every sign-in, every refused sign-in with its real reason and the address it came from, and every way into an account that its owner added or removed.
The log is append-only. It knows insertion and purge and nothing else: no endpoint can modify an event.
What one event holds
| Field | What it says |
|---|---|
| when | the second it happened |
| actor | the account, plus the token when one was used |
| action | route.update, theme.branding, settings.update, maintenance, backup.snapshot... |
| target | the kind of object, its id and its name |
| organisation | when the change belongs to one |
| changes | one entry per field that moved, with its from and its to |
| detail | a note, for creations, deletions and acts that have no diff; the reason of a refused sign-in |
| address | on the security half, the address the gateway resolved |
An import, a restore or a switch of configuration writes one line, and its detail says what it did: the counts, then which objects were added, updated and removed, and for a setting the fields that moved - setting tls (redirect) rather than a bare "8 updated". Capped at eighty names, the rest counted.
An update whose diff comes out empty writes nothing: saving a form without changing a value is not an event.
The diff is computed generically, by comparing the old and the new object field by field, so it works for a route, an account, an organisation or a settings payload without any per-type code. A nested object or a list compares by its whole encoding: a change anywhere inside surfaces the whole field.
The acting token is named
A change made by an agent or a script reads admin, via claude-desktop, not admin. The stamp is applied inside the audit write itself rather than at its call sites, so no endpoint added later can forget it. A trail that names the agent in four cases out of five is worse than one that never does: the fifth reads as if a person had done it.
Secrets never land in the trail
A field whose name contains password, secret, token or hash is recorded as ***, at any depth inside a nested object. An image sent as a data URI is summarised - its kind and its size - rather than stored twice over as base64: a branding save carries two of them, the before and the after.
Fields that say nothing about a change are skipped: identifiers, server timestamps, and the display-only names that ride along on a round trip.
The security of the accounts
Written by the sign-in pages and the profile, never by the control plane, under two target kinds of their own: account for an application account, console for a sign-in to the console.
| Action | When | Detail |
|---|---|---|
signin |
a session was issued | how: password, totp, passkey, email-code, external-totp... |
signin.organisation |
an organisation entered, chosen after signing in or switched to later | its name |
signin.refused |
a door stayed shut | the reason (below) |
signin.locked |
the attempt that tripped the throttle | throttled, or bad-code for a second factor |
signout |
the account signed out | remote when closed from Active sessions |
password.change |
changed by its owner | required when the change was forced |
password.forgot |
a reset link was mailed | |
password.reset |
the link was used | |
mfa.enroll, mfa.remove |
a second factor added or removed | |
passkey.add, passkey.remove |
a passkey registered or revoked | the browser, on an addition |
email.change.request |
a new address asked for, its link mailed | the new address |
email.change |
the address changed (confirmed, or at once without a relay) | the new address |
token.create, token.revoke |
a personal API token | its name |
register, register.confirm |
a self-registration and its confirmation | |
devkey.add, devkey.remove |
a plug key deposited or removed, one per workstation | its fingerprint, never the key |
The reasons a sign-in is refused: bad-credentials, disabled, outside-validity, unconfirmed, outside-hours, bad-code, passkey, not-recognised (the authority no longer knows the account), not-invited, and provider:<id> when an identity provider refused.
The page the visitor sees says the same thing for a wrong password, an unknown name and a disabled account, so nothing is enumerated. The trail says which it was: its reader is an administrator.
A refused name that matches no account has no actor. What was typed is recorded as the target's name, clipped, so the line still says what was tried.
Hammering does not fill the table. The attempt that trips the throttle writes signin.locked, and the attempts refused after it write nothing: an attacker at a thousand tries a second is not a thousand rows a second.
Each line carries the address the gateway resolved, never an X-Forwarded-For that the caller wrote. And the organisation when there is one: on the sign-in itself for an account that belongs to a single one, on the signin.organisation line when it is chosen afterwards. That stamp is what shows the line to that organisation's administrators.
These lines are not pushed live to the console: a list of accounts re-read at every sign-in of anybody would be noise. The account's own sign-in history stays on the profile, and it goes with the account. The trail outlives it.
Who sees what
The trail is a transverse screen of its own, and each caller reads the slice their capabilities cover:
| Caller | What they read |
|---|---|
| root | everything, console sign-ins included |
| infra-admin | routes, identity providers, certificates, settings, issue reports |
| app-admin | accounts, roles, themes, languages, schedules, settings, issue reports, and the application accounts' security |
| an organisation's administrator | the events of the organisations they administer, their members' sign-ins into them included |
| anybody else | nothing, and the endpoint refuses rather than serving an empty page |
A sign-in to the console is root's alone: it says where and when the people who run the gateway work.
The agent's read_audit tool shares that same function: an agent that saw a wider trail than the console would be a way around the capability model, and it would be nobody's fault in particular.
Sent to a collector
Infra, OpenTelemetry, tab Audit (Enterprise), two switches:
- Send the audit logs: the data plane - the accounts' sign-ins, refusals, password and second-factor changes, and the calls of the operations audited in Endpoint audit, which are kept in Meerkat either way and sent to the collector only while it is on;
- Send Meerkat's console audit too: the changes made in the console and the sign-ins to it.
Each event also leaves as an OpenTelemetry log whose resource says meerkat.stream=audit: the Collector and the backend keep it apart from ordinary logs, with its own query, retention and readers. The action is the body; the actor (user.id, user.name), the target, the organisation, the client address and the field-level changes are attributes; the trace id is the request's, which joins the event to its trace and its access line.
A copy, never sampled: the trail stays here. Recording an event never waits on the network - it is queued and sent in batches, retried while the collector does not answer. What a full queue has to drop is counted, and the tab says so.
Auditing a route's operations

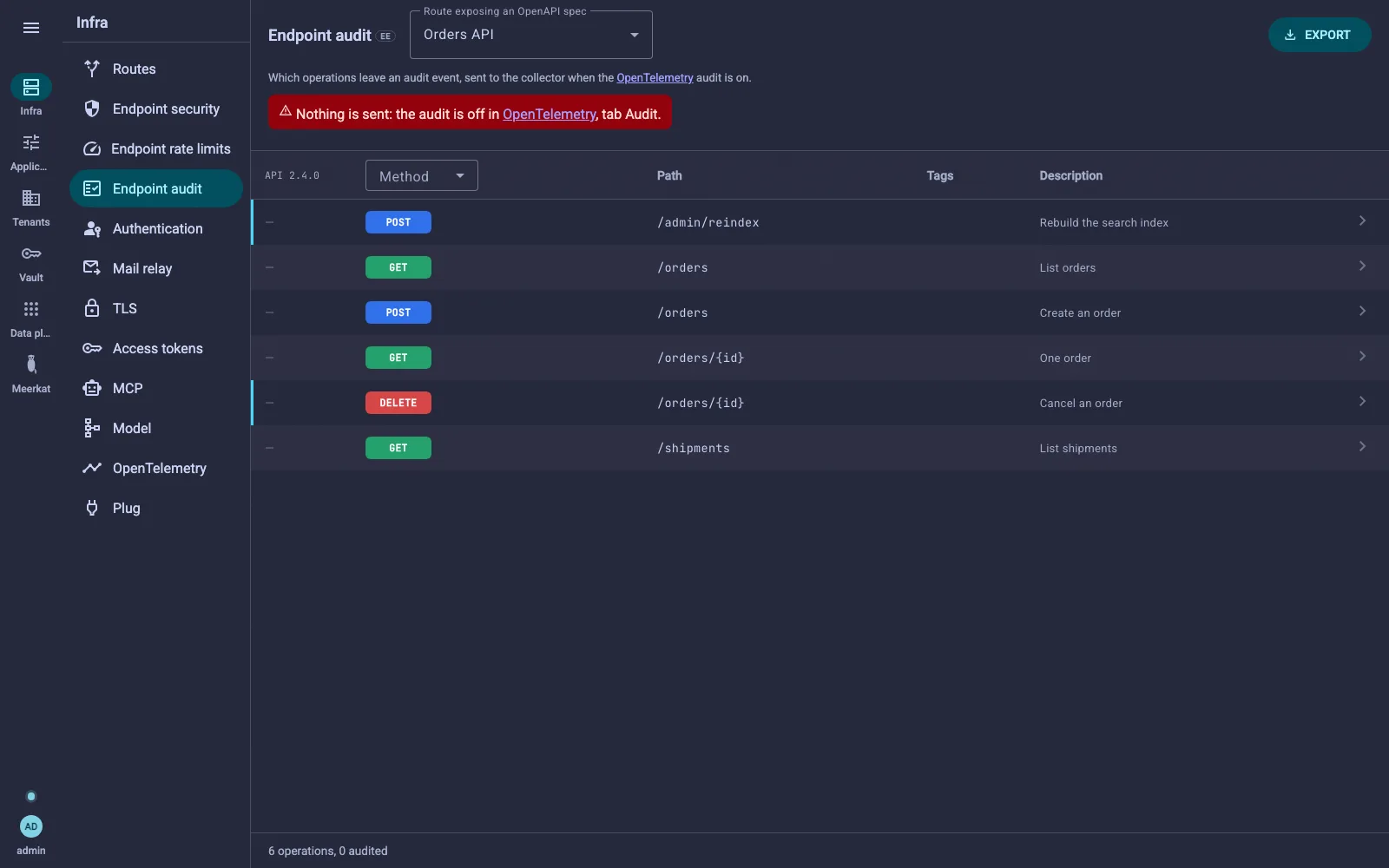

Infra, Endpoint audit (Enterprise) lists the operations of each route's OpenAPI contract, with a switch per operation. An audited call becomes an audit event: kept in the trail, where Data plane, Audit, Operations shows it, and sent to the collector with the rest of the trail when the OpenTelemetry Audit tab is on.
An event names the caller as the gateway authenticated them (account, organisation, group, roles), the operation, the path as requested, the status, the address and the trace id, then the fields the operation takes from the call and, when asked, the JSON body with its secrets masked.
They are written off the request, in batches: a call never waits on the trail, and a queue that cannot keep up drops events rather than slow the traffic - the screen says how many since the gateway started. Their volume follows the traffic, so they have their own lifetime, a month by default, which root sets on the same screen (Keep operations for): seven days to a year, apart from the year the changes are kept. An application administrator reads every call; an organisation's administrator, the calls made in their organisation.
On the community image the screen is locked, and so is the route editor's upload: an event nothing would ever send is a trail that looks kept and is not. Rules a configuration brings over from the Enterprise image are kept with the route and not applied, and can still be removed.
| Always carried | |
|---|---|
| the caller | user.id, user.name, meerkat.tenant.id, meerkat.tenant.name, meerkat.group, meerkat.roles |
| the operation | meerkat.route, http.request.method, http.route (the template), url.path (as asked) |
| the answer | http.response.status_code - a refusal is an event too |
| the rest | client.address, the trace id, and the description as the body (pre-filled from the OpenAPI summary) |
On request, per operation:
- fields taken from the call, carried as
audit.field.<name>: a path variable, a query parameter, a header, or a JSON pointer into the body (/order/id); - the JSON body, 64 KB at most, with the fields that hold secrets replaced at any depth (
password,token,secret,apiKey... - the list can be changed per operation).
Auditing observes and decides nothing: it is wrapped around the endpoint security, sees the answer the caller got, and cannot open or close an operation. A route without an OpenAPI contract cannot be audited this way: deposit its contract, or let the service audit itself.
From one route to another
Export on the Endpoint audit screen downloads the route's rules as a JSON file. In the route editor, the OpenTelemetry section has Upload audit configuration: it reads such a file, and the rules are saved with the route. The button is greyed on a redirect route: it has no operations to audit. The rules also travel with the configuration export.
Filters, retention, and what is missing
The applications' sign-ins have a screen of their own, Data plane, Audit. Meerkat, Audit filters the rest on the part of the trail (All, Changes, Console sign-ins). Both filter on the period and a free-text box that also searches the reason and the address, and Meerkat's on the target kind of a change. The API adds the actor and the target id, and notTarget to leave one kind out: GET /api/audit?kind=security, GET /api/audit?notTarget=account.
Retention is a year by default, applied by the periodic sweep, and root chooses it at the top of the screen - three months, six, one, two or five years (Keep events for). Root's alone: whoever may shorten the trail may erase their own traces with it. Shortened, the older events go at the next sweep.
Export CSV (Enterprise) takes the trail out as a file for an auditor or a SIEM: the filters on screen, the perimeter of whoever asks - never more than their screen shows - one row per event, the diff as JSON in its own column. The export writes its own line (audit.export, read by root): the file carries addresses and names. GET /api/audit/export takes the same parameters as the list.
Not there yet: server-side pagination, the tunnel's own activity, a Parquet export.
