The console

The console is Meerkat's administration application. It is served by the gateway itself, on the admin port (the control plane), and it is the same binary: there is nothing extra to deploy, and nothing to keep in step with the version that routes your traffic.

It is an operator's tool, served in English.

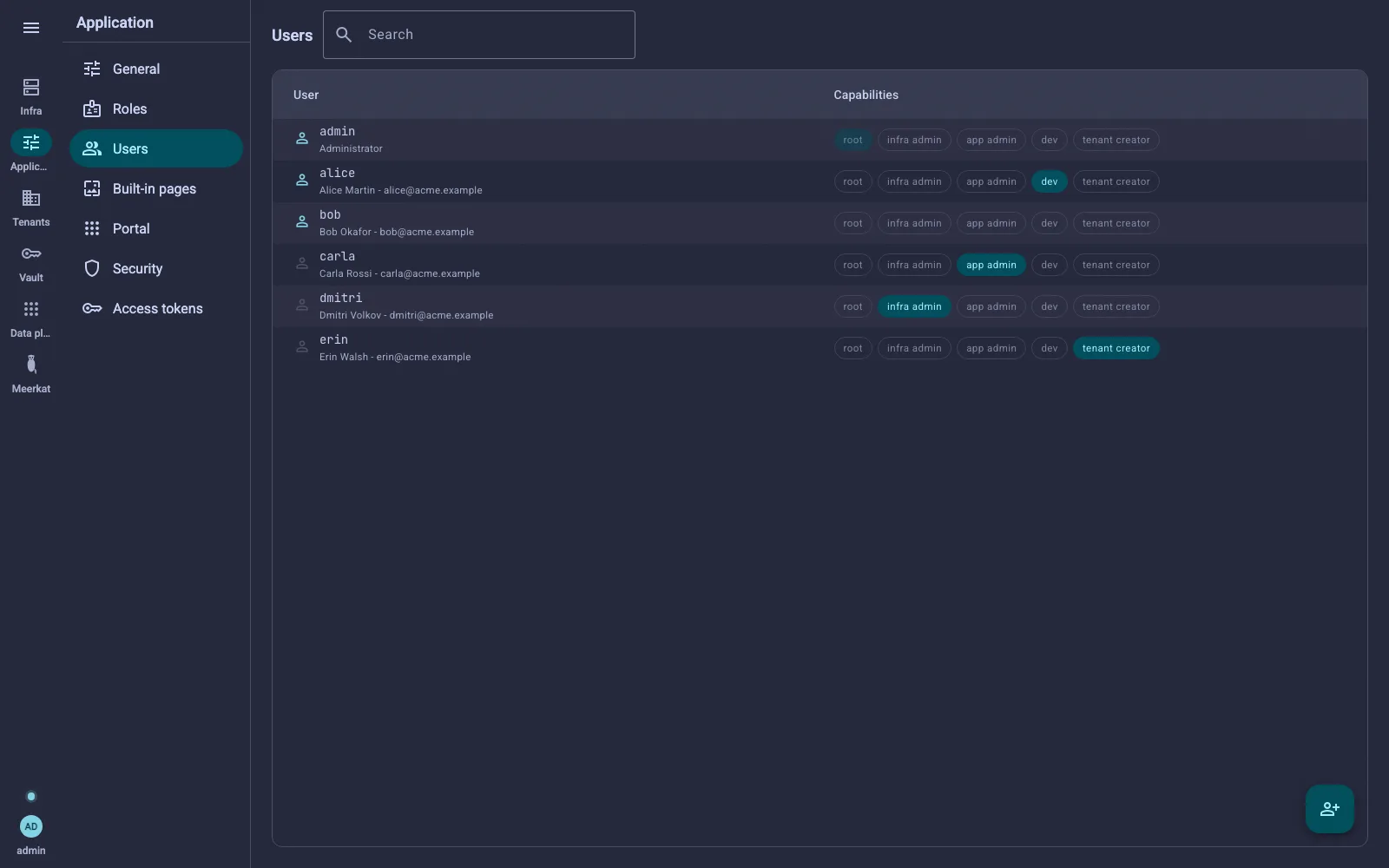

The console on the Users screen, with the rail on the left and the Application plane's sections beside it

On the far left, the rail: the two planes and the transverse screens. Beside it, the sections of the plane you are in. The rest of the width is the screen itself.

Two planes, and what sits across them

The left rail holds the two planes and the transverse screens.

Rail entry	URL	What it answers
Infra	`/infra/...`	How requests travel: routes, endpoints, authorities, TLS, the relay
Application	`/application/...`	The product your users see: identity, roles, pages, portal, policies
Tenants	`/tenants/:id/...`	One organisation at a time (several-organisations mode only)
Vault	`/vault`	Every named value and secret the configuration points at
Data plane	`/data-plane/...`	What the applications are doing: their sign-ins (Audit), who is signed in to them (Sessions), the calls made to them on a schedule (Scheduler), what the gateway served (Metrics), what your users reported (Issues)
Meerkat	`/system/...`	The gateway itself: who changed what and who signed in to the console (Audit), what it says about itself, live (Logs), who holds the console (Sessions), the whole installation as a document or a database (Configuration) - and, at the foot, the control plane's REST reference (API reference), what this version brought (Release notes) and the edition (License)

The split is not cosmetic. Infra is about the installation: an upstream, a certificate, an SMTP server, a directory. Application is about the product that installation serves: who your users are, what they may do, what your sign-in page looks like. The same person often does both, and holds both capabilities, but the questions are asked in two places.

Meerkat lives at /system, not /meerkat: outside /api, the paths of the control plane belong to the product (/meerkat/... serves the gateway's own scripts), so the console keeps clear of them.

What you see depends on who you are

The console shows what your capabilities allow, and the admin API enforces the same scopes on every call.

Capability	Opens
`root`	Everything, including Configuration
`infra admin`	The Infra plane (with Access tokens and MCP), Metrics, Logs, Audit and Issues, the vault's infra scope
`app admin`	The Application plane (with Access tokens), Sessions, Scheduler, Audit and Issues, the vault's application scope
`tenant admin`	The organisations they administer, Sessions, Audit and Issues scoped to them
`tenant creator`	Creating an organisation from the Tenants drawer
`dev`	The developer tooling on the served applications, not a console screen

Signing in lands you on the first section you may use: Infra on Routes for an infra admin, Application on General for an app admin, Tenants otherwise (License when there is a single organisation). Capabilities are granted per account on Users.

The habits of the screens

Learn these five and the console stops surprising you.

A list, then a drawer on the right. Clicking a row opens the object; the list stays where it was. On Routes, Users, Roles, Authentication, Issues and Configuration the drawer is in the URL, so a refresh or a bookmark comes back to exactly what was open.
Row actions live in the last column of the table, and appear on the row you are pointing at.
Saving. Some screens save on the click (a switch, a checkbox in a matrix), others have a Save button and say what is still missing. Where it matters, the screen says which it is.
Enterprise features are marked. On the Enterprise image they carry a small EE badge (tooltip Enterprise edition feature). On the community image they are locked and dimmed, with an Enterprise badge that says what they buy and links to License. Nothing is hidden.
Secrets go through the vault. A sensitive field offers to store its value in the vault and refuses to be saved as a literal.

The screens, by group

Infra

Routes - the routing table, in order, and the route editor.
Endpoint security and rate limits - per operation, from a route's OpenAPI spec.
Endpoint audit - which operations are recorded in the audit trail.
Authentication - the authorities people may sign in through.
Mail relay - the SMTP server, and the daily digest.
Domains & TLS - the certificates, ACME, and the names a proxy in front serves.
OpenTelemetry - traces, metrics, audit and logs sent to your collector.
Plug - the developer tunnel.
Access tokens, MCP and API - driving Meerkat without a browser.
Model - the fields an account carries, documented with Users.

Application

General and Security - what this installation is, and its policies.
Roles - the global role catalogue.
Users - accounts, capabilities, and their fields.
Groups, Members and Group rules - who is in which group.
Built-in pages - theme, layout and branding of the pages the gateway serves.
Portal - the navigation bar the proxied applications wear.
Sessions - who is signed in, and signing a session out.
Access tokens - console tokens, and everyone's application tokens.

Across both

Tenants - one organisation's own administration.
Vault - secrets and values, referenced as $name.
Metrics - traffic, latency, the ranking of routes.
Scheduler - the scheduled calls and their runs.
Audit and Issues - the trail of changes, and the reports.
Logs - the gateway's own lines, live, and its level. One node at a time.
Configuration (under Meerkat, root only) - configurations, restore points, snapshots and migration: the whole installation, which crosses both planes.
License (under Meerkat, and open to everybody) - which edition answered, and every Enterprise feature: what it does, how far it is built, and the screen it lives on, or that it has none (the active/active cluster, the deployment files). The list is read from the product's own feature contract, so it cannot drift from it. It is the only screen that talks about editions: everywhere else a locked control carries its badge and links here.

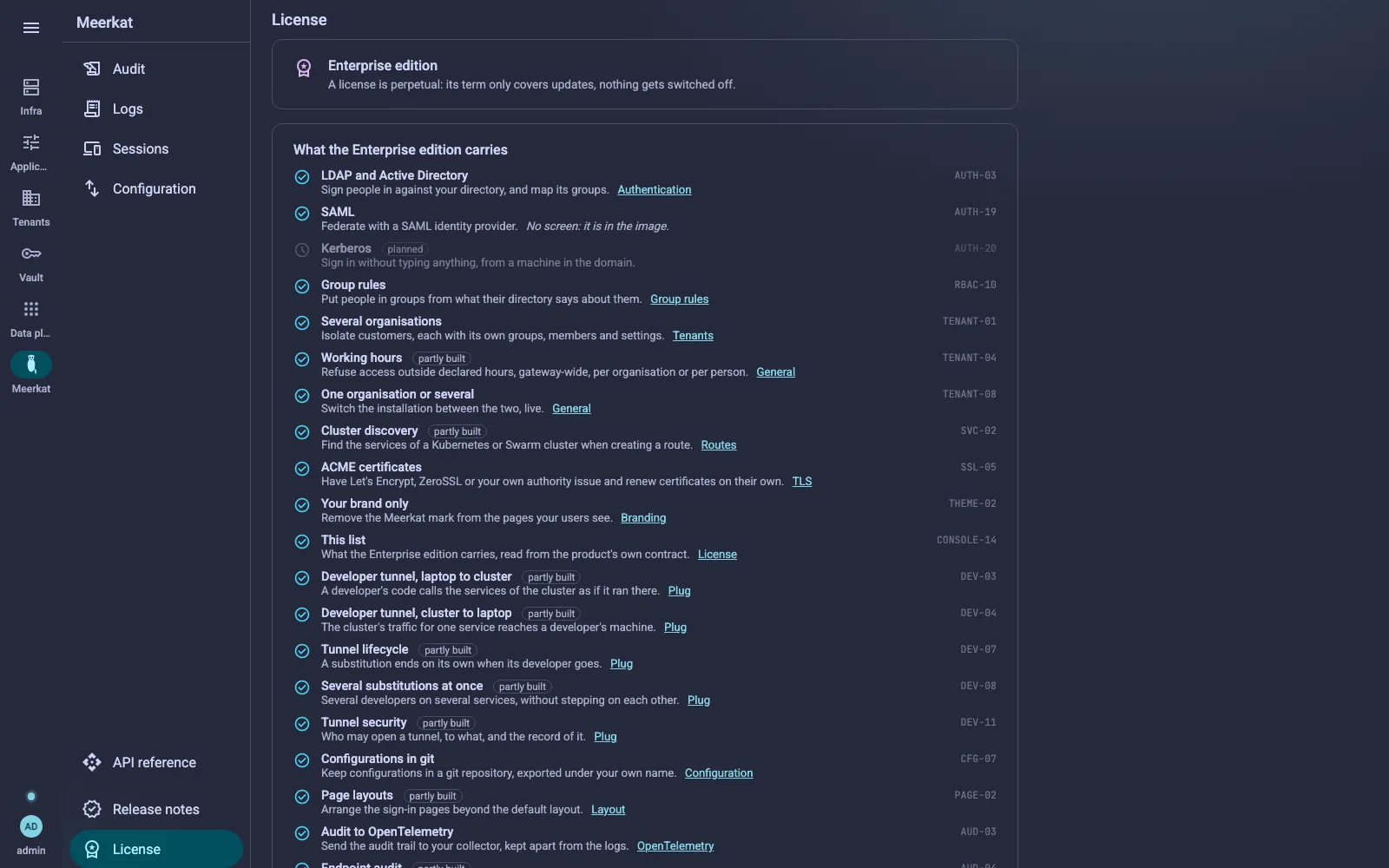

The License screen: the edition, then every Enterprise feature with how far it is built and the screen it lives on

Your own account

The bottom of the rail is you. The line with your name opens /profile - the gateway's own profile pages, the same ones your users get: photo, password, second factor, passkeys, personal API tokens. Sign out is underneath, and it signs out every console tab at once.

Version and release notes

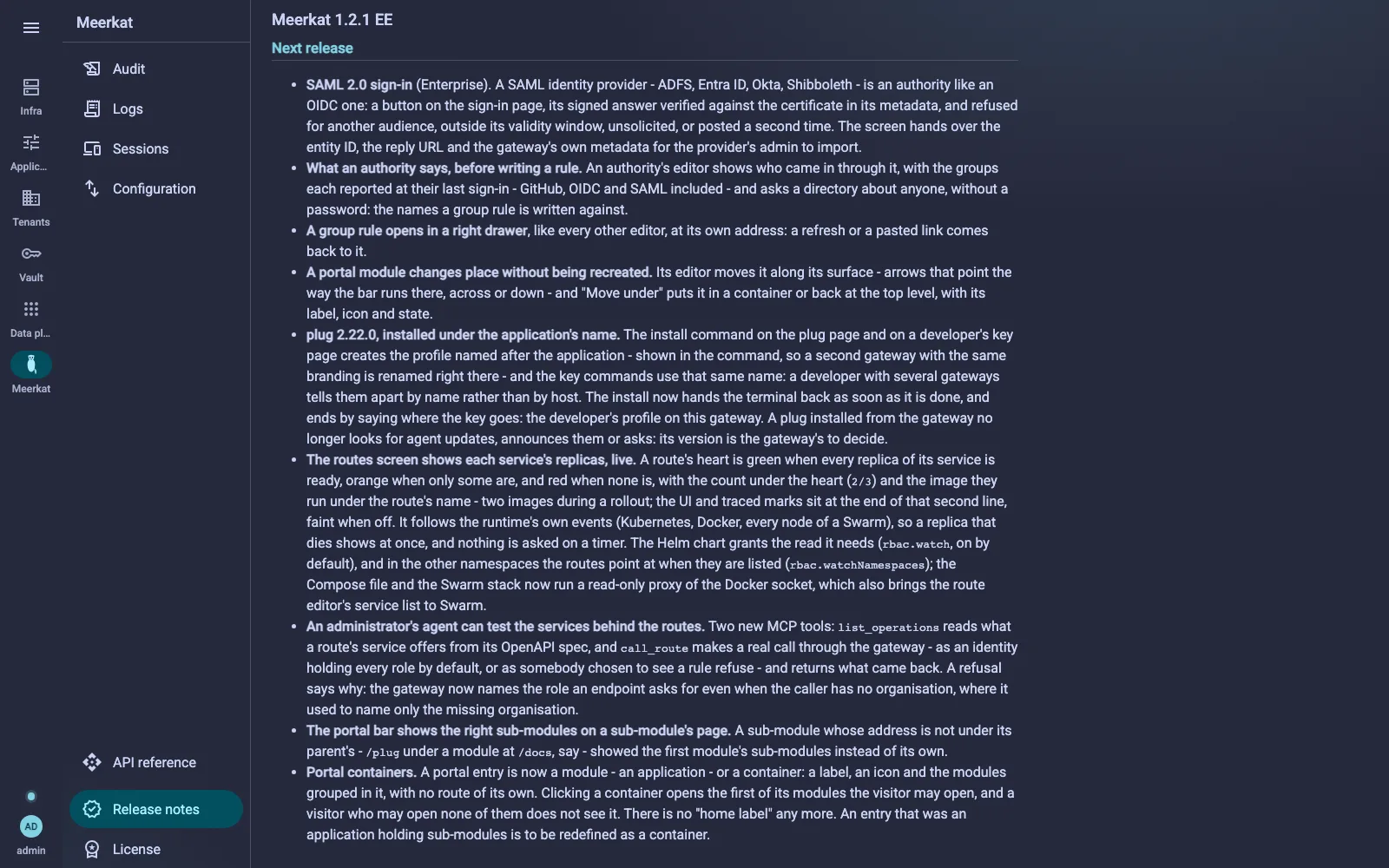

The release notes, open on what the next release brings

Meerkat, Release notes says which version runs, and which edition, in its title: Meerkat 1.0.1 EE (or CE). Underneath, the release notes, newest first, from that version down to its minor release - the same text as the GitHub release. A development build shows the last release it carries, with what is coming under Next release on top; an empty section says Missing information.

Right under it, License opens the edition's screen: every Enterprise feature, how far it is built, and where it lives. Both are open to everybody holding the console.
