Vault

The Vault entry in the rail holds every value the configuration refers to, in one place. Two kinds live in one namespace:

Kind	Read back	For
Secret	Never. Encrypted at rest, and the API says it is set, not what it is	A client secret, an SMTP password, an HMAC key
Value	Yes, in the clear	A URL, a base DN, a client id - anything that is not a secret but changes per environment

Both are referenced the same way, $name, wherever a field accepts one. That is the point: promoting a value to a secret never touches what points at it.

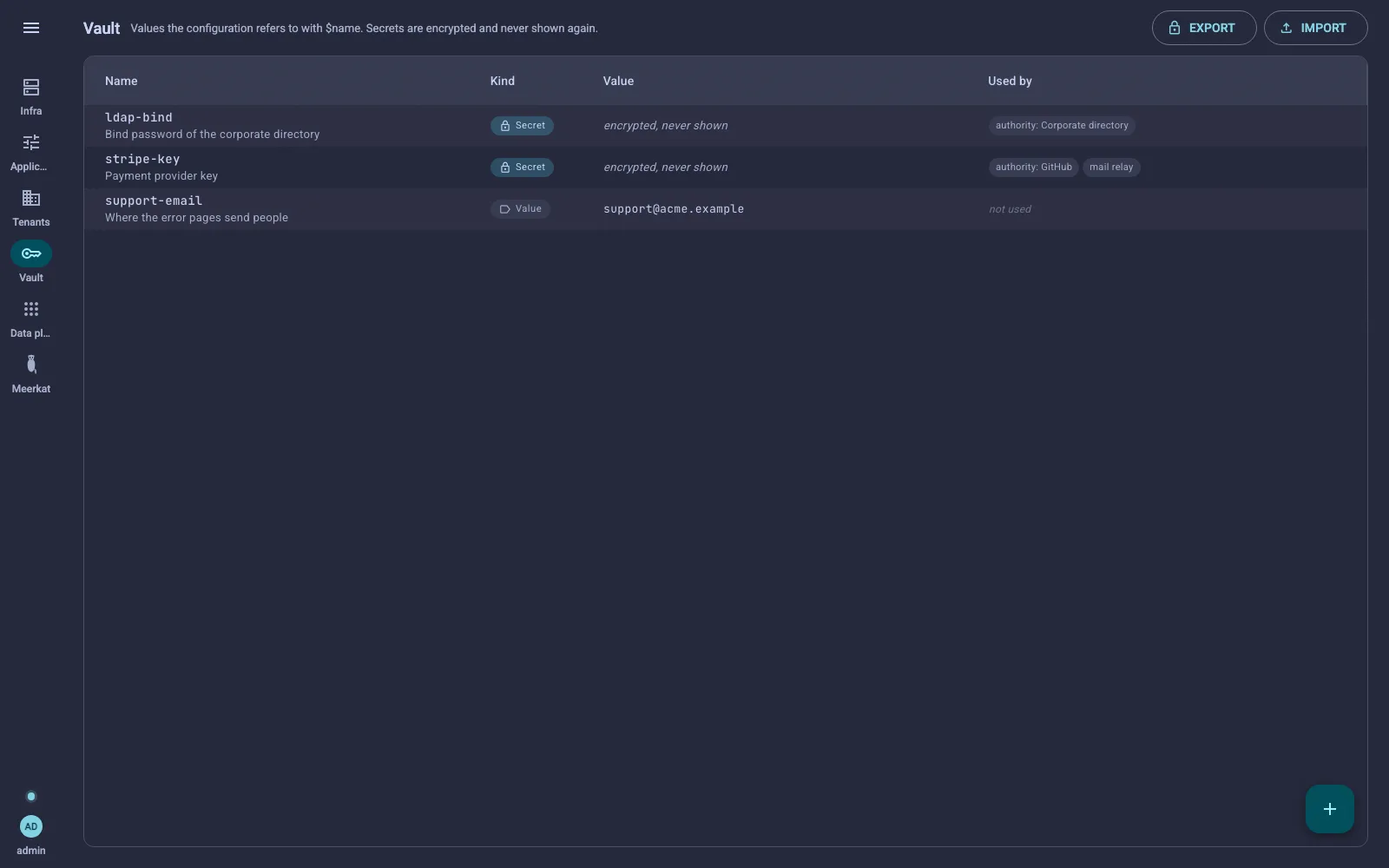

The Vault screen: three entries - two secrets and a value - with their kind, their value and what uses them

Two secrets reading encrypted, never shown, one value readable in the clear, and the Used by column naming the route that points at each one.

The list

Name and description, kind, value (or encrypted, never shown), and Used by - the column that tells a live entry from a leftover. Clicking a row opens the editor; the + creates an entry.

A secret this gateway's master key cannot open reads cannot be decrypted with this master key, and a line above the list counts them. It is what a migration under another key leaves: every name is listed and none of the values resolves. The gateway checks each secret by opening it, and sends a yes or a no - never the value. Start it with the key the secrets were sealed with (MEERKAT_VAULT_KEY, or MEERKAT_VAULT_KEY_PREVIOUS while rotating), or type each value again.

An entry carries:

Name - what $name will say.
Kind - value or secret, chosen on a toggle.
Value - typed once for a secret. A stored secret's box stays closed, since the value never comes back to the console; its pencil opens it to type a new one, and cancelling keeps the stored secret.
Description - for whoever finds it in six months.
Reminder date - the day the secret expires at its source. It is purely a reminder: the gateway cannot know a token was renewed at the provider, so $name goes on resolving. The date feeds the daily digest, which lists what is coming and what has just passed - never the value.

Where entries come from

Most are created from the field that needs them. A sensitive field offers Move into the vault, and refuses to be saved as a literal: the administrator holds the value, so they are the one who files it. A field that accepts a plain value offers the same for values.

Which means the usual order is the opposite of what you might expect: you fill in a relay, an authority or a certificate, and the vault entry appears as a result.

The vault as a file

Export writes the vault as a single encrypted file, under a passphrase Meerkat does not keep. Import reads one back. This is the half a configuration export never carries: it is what bootstraps a second environment or moves a gateway.

An exported vault is worth exactly what its passphrase is worth, and storing the two together undoes the encryption. The same is true of a snapshot whose master key sits beside the database.

What you can see

The vault scopes itself to the caller: an infra admin sees the infra entries, an app admin the application's. The screen is open to anyone administering a plane that holds entries.

Traps

A reference is public, a literal never is. $stripe_key can appear in an export, a diff or a screenshot without consequence. That is the whole reason the vault exists.
A secret cannot be read back, by you or by the API. Losing it means replacing it at the source.
A configuration import can leave holes: entries the file refers to and this gateway does not have. The import lists them so you can fill them in straight away.
Deleting an entry that is used breaks whatever pointed at it. Read the Used by column first.
