Notifications

The services behind the gateway tell their users something, and the users see it in whichever application they have open. This page is the administrator's side: turning it on, letting services publish, choosing where users read, and following what was sent. What a service sends, and what its users see, is on Notifying your users. Enterprise edition.

Turning them on

Three levels, and each one can only take away: a tenant receives notifications when all three allow it.

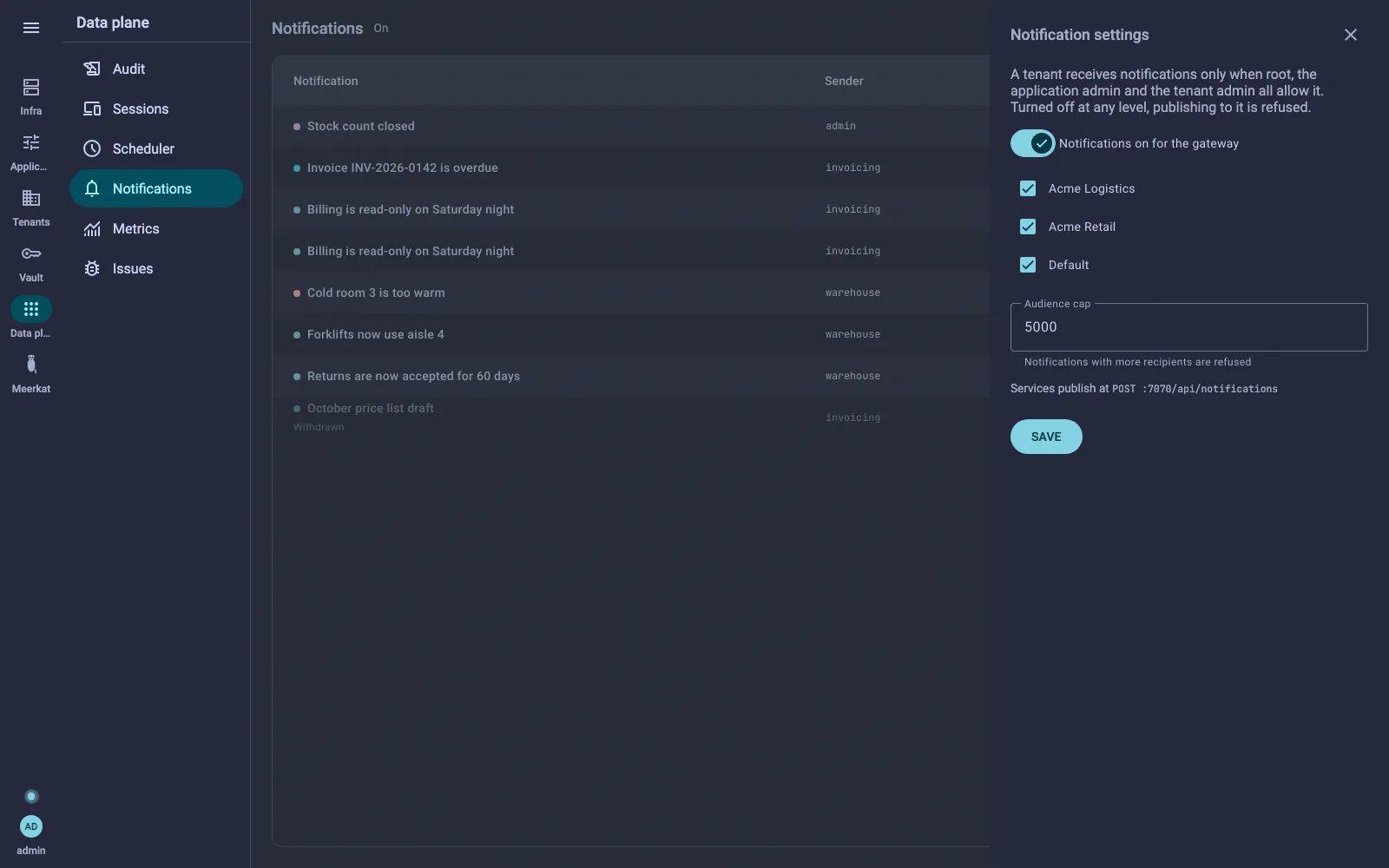

In the drawer, each tenant is a checkbox, read from your level:

• ticked: you allow it, and it receives them;
• empty: you turned it off;
• a dash: you allow it, and a level below turned it off - the tooltip says which. Clicking the dash turns it back on and clears what the levels below decided; they may turn it off again later;
• greyed out: a level above turned it off, and only that level turns it back on.

A new tenant is allowed at every level. On a gateway with a single tenant there is no tenant level: root and the application admin decide.

A publication to a tenant that is off is refused, and the refusal names the level that turned it off. A person gets the notifications page, its menu entry and its badge as soon as one of their tenants receives notifications.

The audience cap, set by root, bounds how many people one notification may reach: 5000 unless changed. Above it, publishing is refused.

Data plane, Notifications

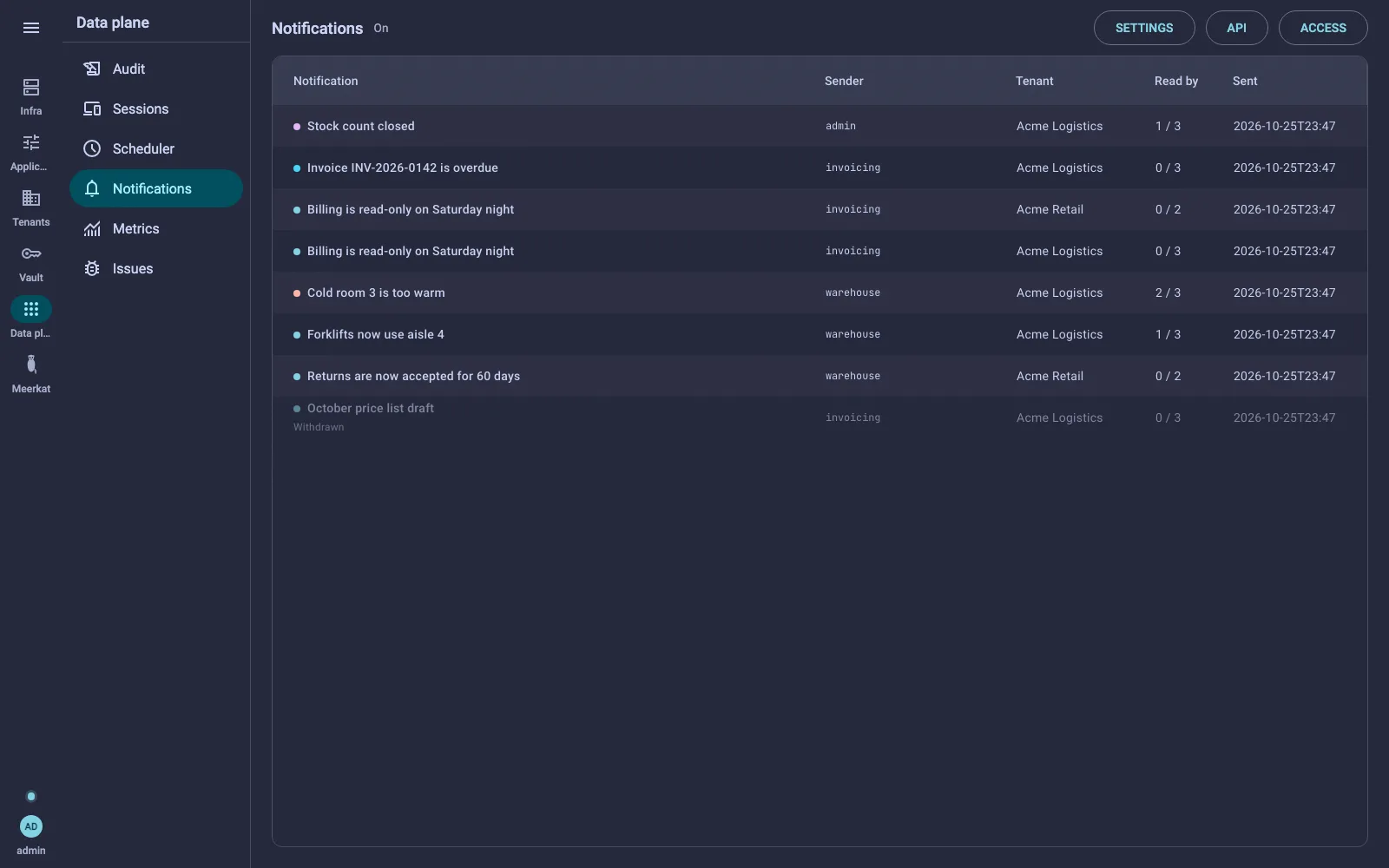

Root and the application admin follow here what every service sent, newest first: the title and its level, the sender, the tenant, how many of its recipients read it, and when it was sent. A withdrawn or expired notification stays in the list, marked so.

A click opens one: its text, its sender and tenant, the address of its detail, each action with its method and address, its metadata, when it was sent and when it expires, and every recipient with the time they read it. Withdraw takes a live one back: it disappears at once from every reader's page, and the list of who read it is kept.

Three buttons sit in the header:

• Settings - the drawer above.

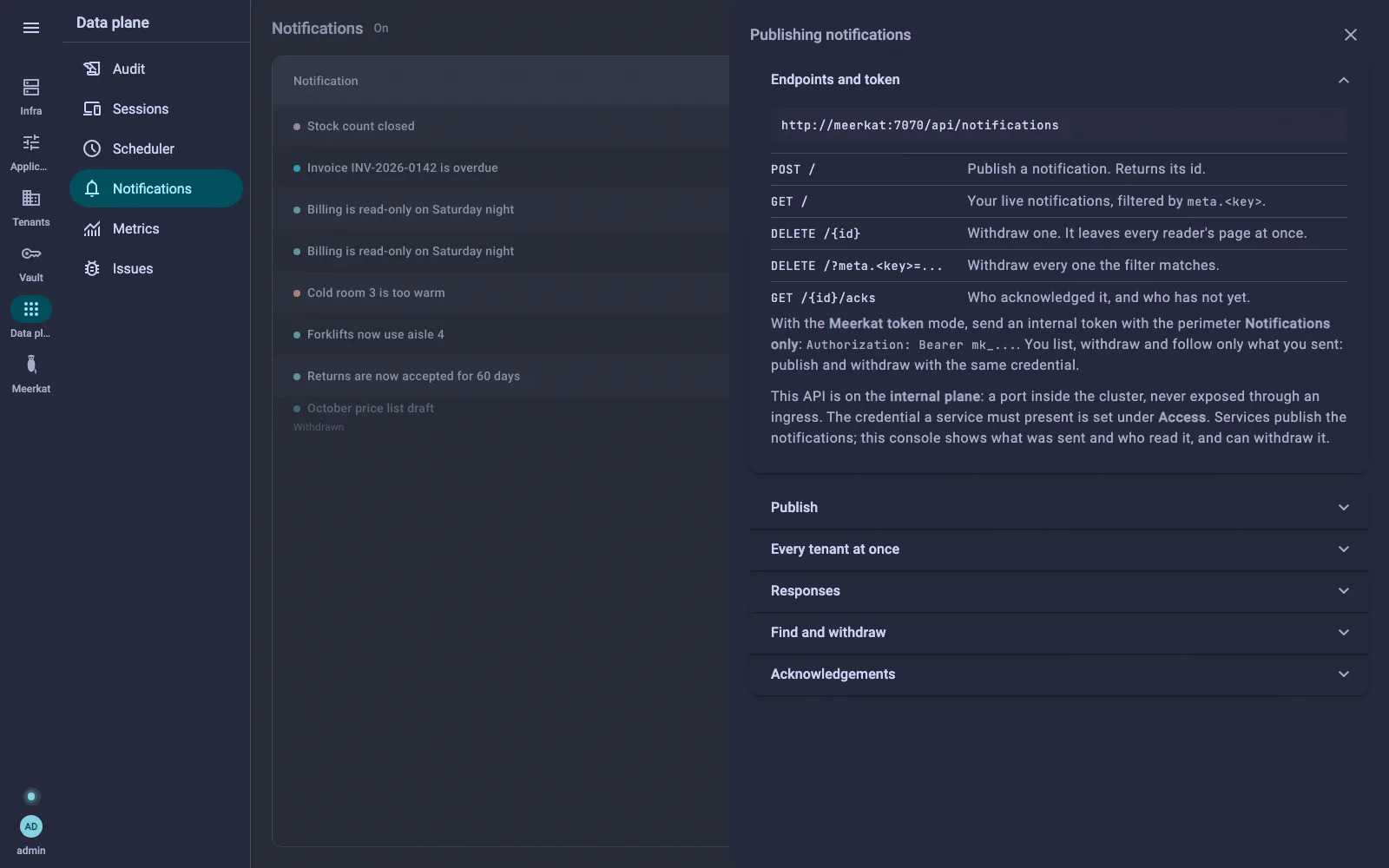

• API - Publishing notifications, for the developer of a service, in six folds: the endpoints and the token, the message field by field, every tenant at once, the responses, finding and withdrawing, and the acknowledgements with the call onAck makes.
• Access - who may publish.

Who may publish

Services publish on the internal plane, POST :7070/api/notifications. The Access drawer decides what a caller must present, exactly as the scheduler's does (who may call it): no credential, a Meerkat token, or the pod's own ServiceAccount token on Kubernetes, then everyone or only the callers listed. Each API has its own setting: the services that notify are not always the ones that schedule.

A new installation asks for a Meerkat token: an internal token of perimeter notifications, minted under Infra, Access tokens, Internal (Mint a token in the drawer leads there). It publishes notifications and opens nothing else. Changing the access takes root or an infrastructure administrator; the application admin reads it.

Where users read them

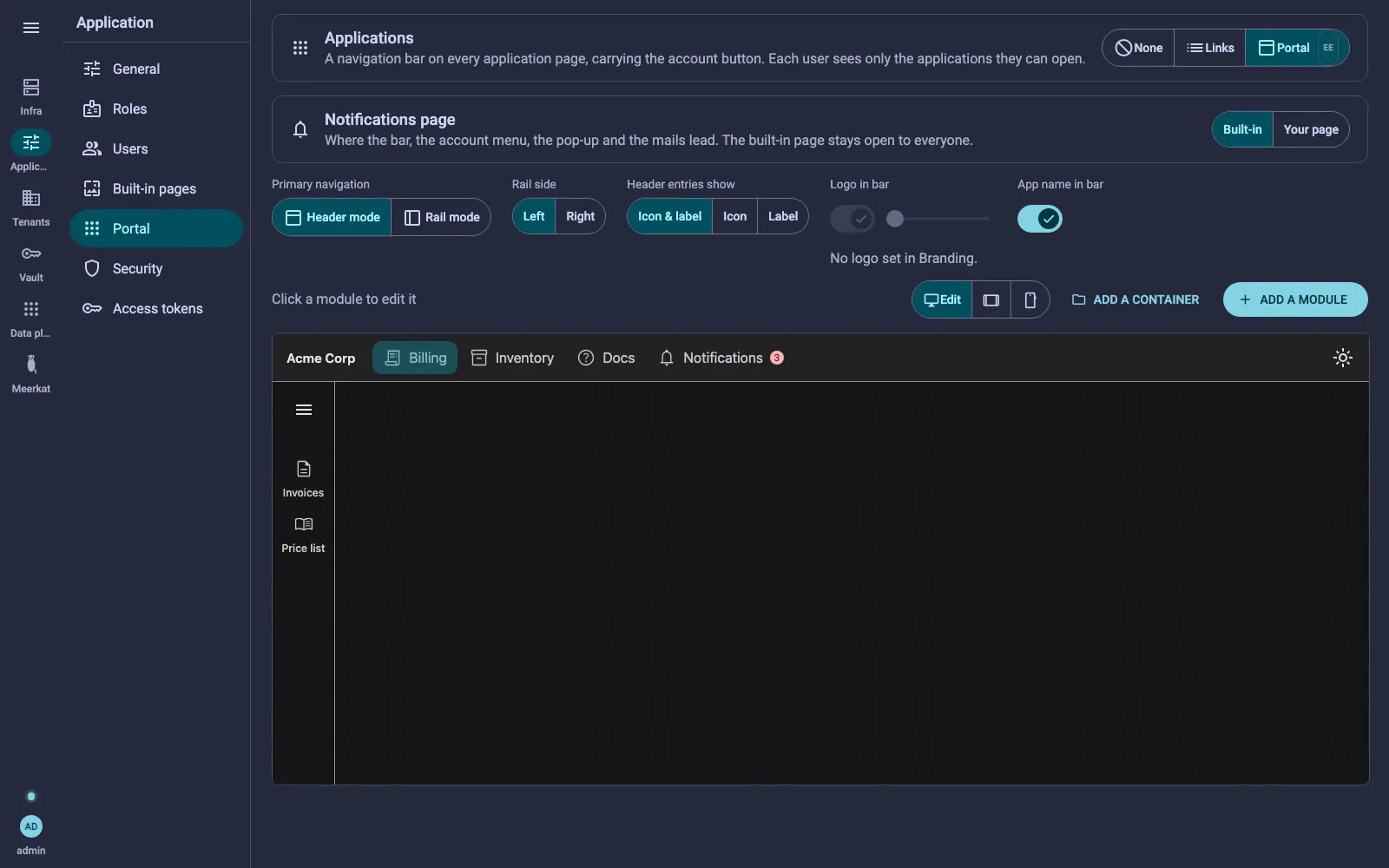

When root turned notifications on, Application, Portal shows a Notifications page card:

• Built-in - /meerkat/notifications, served by the gateway in the theme of the sign-in pages;
• Your page - a page of one of your applications: a UI route, and a path under it such as /#/inbox. It is saved once a route is chosen.

The bar, the account menu, the snackbar and the mails lead to that page. A person who may not open its route gets the built-in page, which stays open to everyone.

One entry, one badge. In Portal mode, Add notifications puts a Notifications entry in the bar. It is placed, moved and removed like the others, and an empty label reads Notifications in each user's language. That entry carries the one badge of unread notifications. Without it - in Links or None mode, or a bar without the entry - the entry and the badge are on the account button. The entries of the applications themselves carry no badge.

The notifications page is also among the built-in pages the theme editor previews, with three snackbars stacked over it as the account button draws them.

A tenant's Notifications section

Tenants, a tenant, Notifications: for root, the tenant's owner and its ADMIN members, on a gateway with several tenants.

• Notifications on for this tenant is the tenant level. It is greyed out, with the reason, when root or the application admin turned the tenant off.

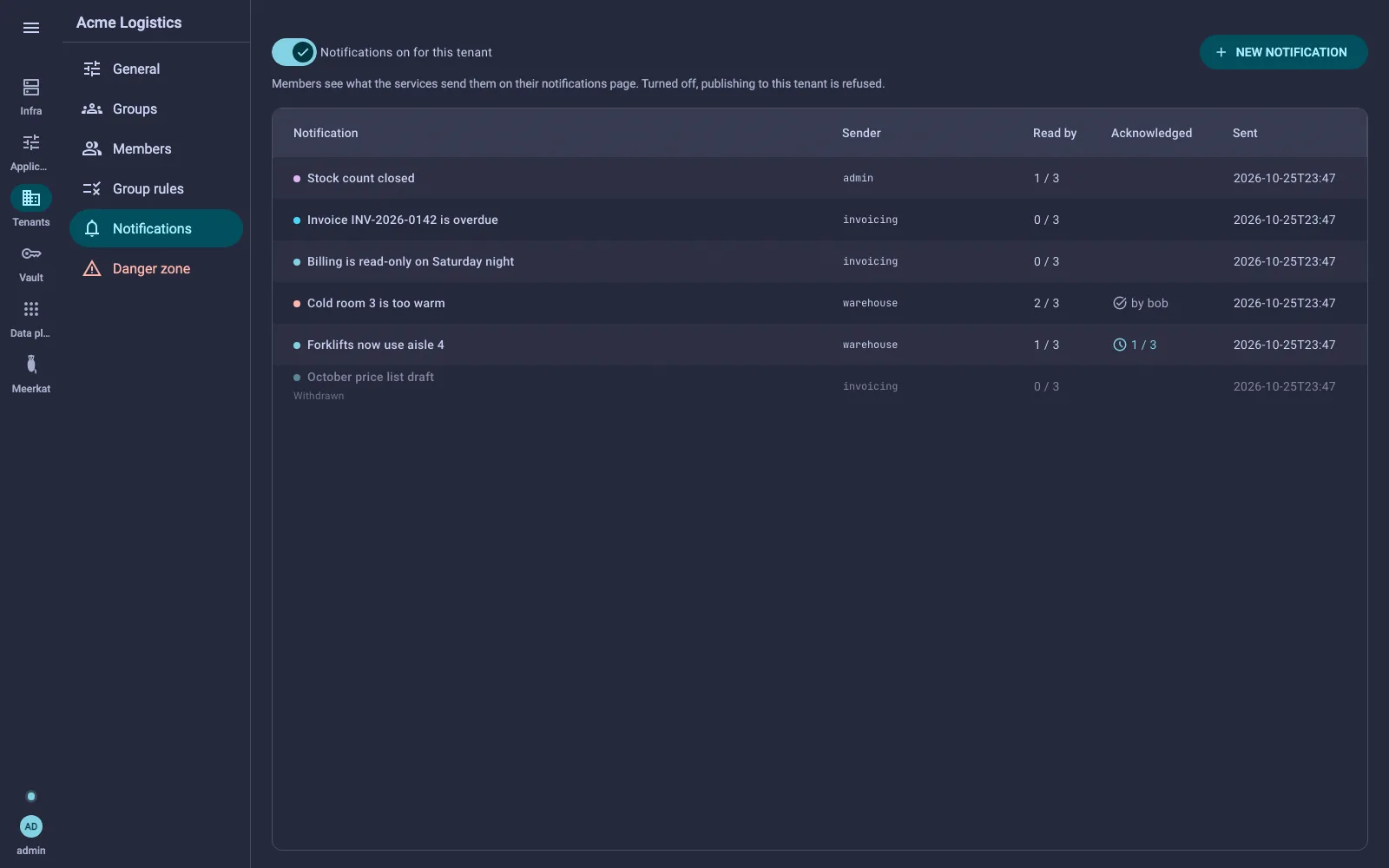

• The table lists what was sent to this tenant: the title, the sender, how many read it, and for one that asks to be acknowledged, where that stands - by alice or Pending when one reader is enough, 37 / 52 when every reader must. It follows live.

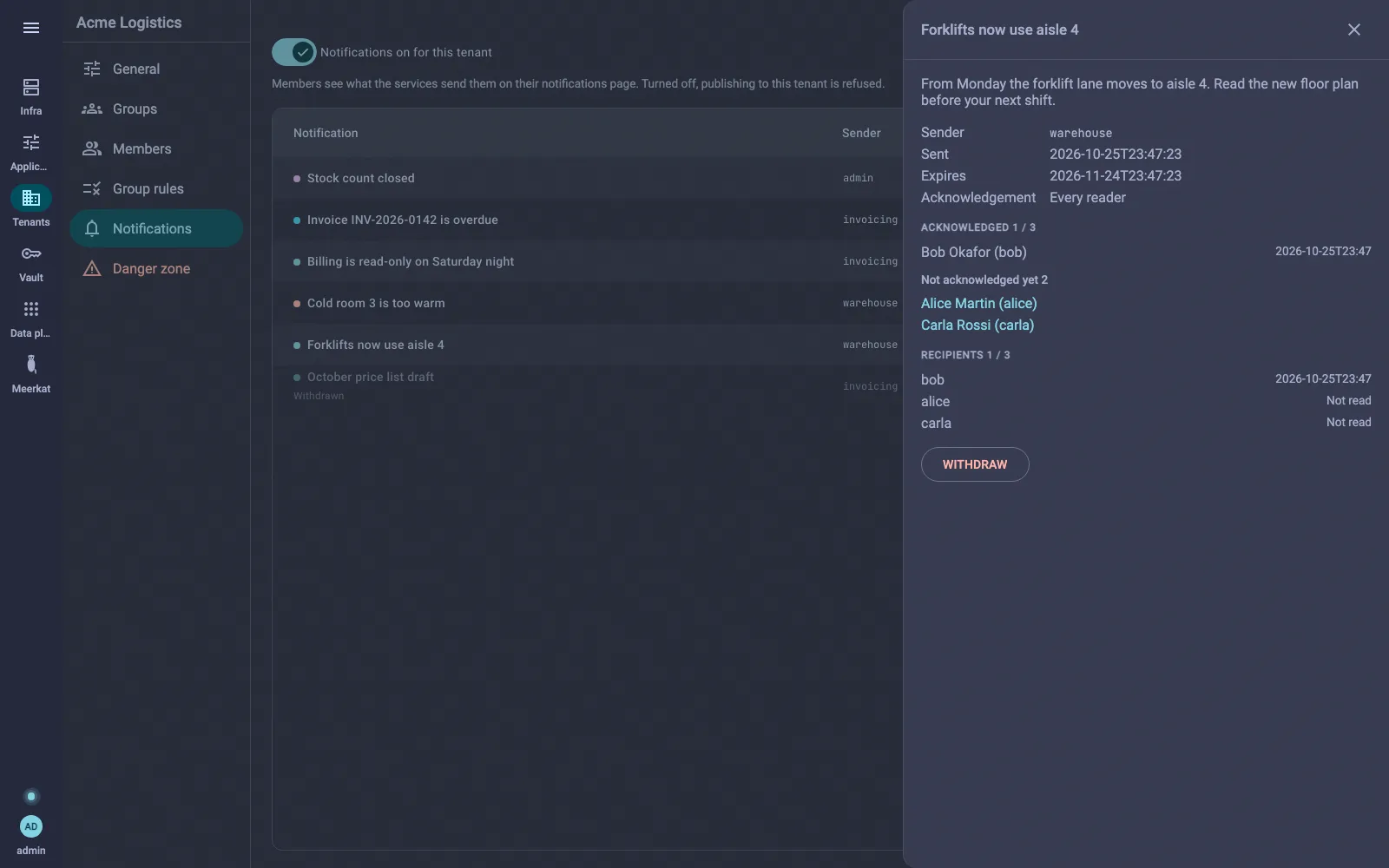

• A click opens one: its text, sender and times, who acknowledged it and who has not yet, every recipient with the time they read it, and Withdraw.

Sending one yourself

New notification opens a drawer to try a notification on this tenant, or to send one by hand. It is offered while the tenant receives notifications, and has two tabs.

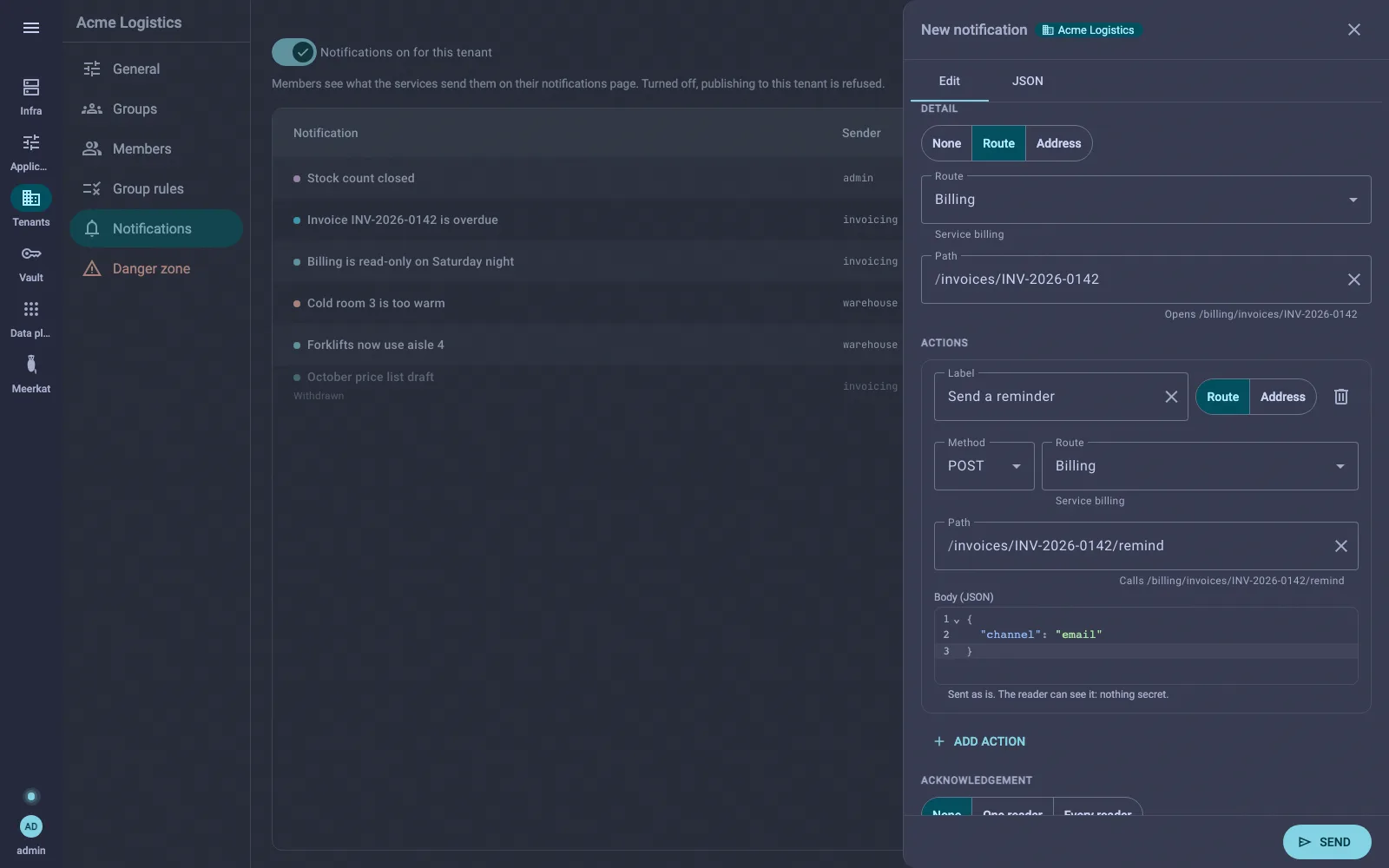

Edit builds it:

• Audience - roles and members. Both empty: every member who may open its links.
• Message - the level, the title and the text.
• Detail - none, a route and a path under it, or an https address. The field shows the address the reader will open.
• Actions - up to five buttons: a label, a route and a path or an https address, and in front of them the Method: GET, or POST, PUT, PATCH or DELETE. Any method but GET opens Body (JSON), a JSON editor; invalid JSON is shown on the field and holds Send back. The body reaches the reader's browser: never put a secret in it.
• Acknowledgement - None, One reader, or Every reader, and the route of your service to call at each acknowledgement.
• More - the lifetime, the key, the metadata, and Also send by mail (only when a mail relay is configured).

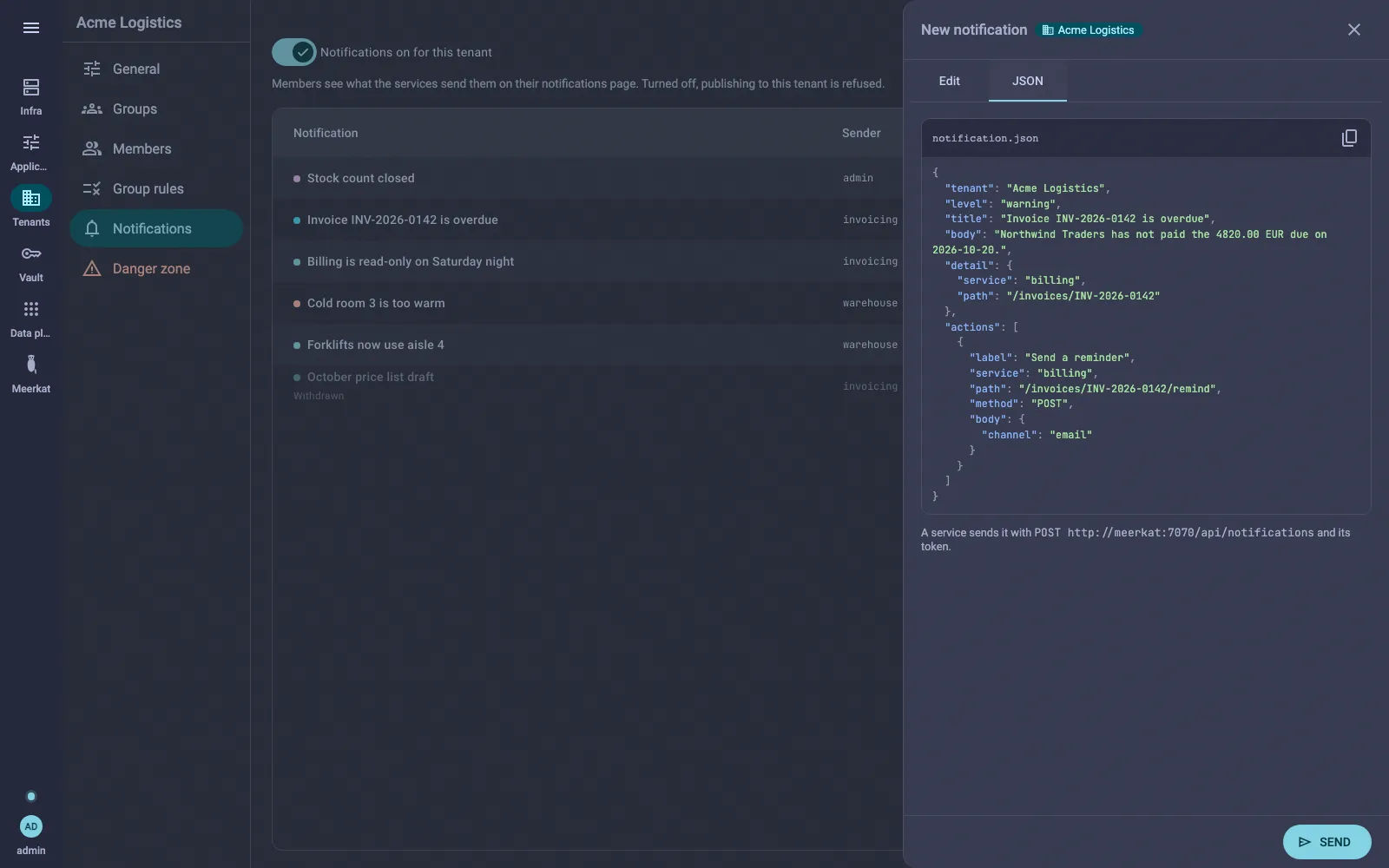

JSON shows the exact message a service would send, coloured and ready to copy: the quickest way to write the call your service will make.

Send, from either tab, publishes it to this tenant at once, with you as the sender. It goes through the same checks as a service's publication, and a refusal comes back under the field it concerns, on the Edit tab.

In the audit trail

An assistant connected to the gateway can list what was sent and withdraw a notification, never publish one: a notification is a service telling its users about its own work.
