Scheduled calls

A service asks to be called later: "POST /jobs/close on me, every day". At the hour named, the gateway makes that call through its own front door, with an identity, and records what answered.

Your service exposes an endpoint - it already exposes some. No library to embed, no protocol of ours, no broker to install.

It runs as meerkat, carrying the roles the schedule asks for

That is the whole security model, and it fits in a sentence: a schedule reaches exactly what its roles reach.

There is no account behind a scheduled call. The schedule says which roles its call must carry (roles, or role when there is only one), the gateway makes the call under the name meerkat holding them, and everything standing in front of the service reads them as it reads anybody's: the predicates, the filters, the route's rule, the per-endpoint rules, the organisation's hours. A schedule asking for the wrong role is not a hole: it is a schedule that fails every night, and the console keeps the sentence that says so.

{ "role": "station_fetch", "routeId": "stations-api", "path": "/fetch/station" }

The roles asked for go through the catalogue's hierarchy, exactly as a session's do: asking for a parent role grants what it implies.

No service account to create, so no rights to keep up to date for ever. What bounds a schedule is the token that wrote it: a token whose perimeter is schedules, minted by root, traced in the audit trail, revocable in a click. Two services that must not reach the same things get two tokens.

If you do want to know whose a schedule is, file it in the metadata: "metadata": { "owner": "stations-svc" } is a key like any other, and one you search on.

When the endpoint being called is protected

Closed by the route's rule, or by an endpoint rule: nothing to put in the schedule but roles. The service receives the identity forwarded the way it is for a human - as headers, as REMOTE_USER or as a signed JWT, according to what the route declares. A wrong role gives a 403 the console shows in as many words, not a hole.

Closed by a secret the service expects itself - a key of its own, a third party: that is what headers is for, with a vault reference for a value. The secret is read only at the moment of the call: neither the database, nor the API, nor the console sees it.

At least once

A call can succeed at your end and fail on the way back, and a gateway can stop in the middle of one. Every call therefore carries a run identifier, the same on every attempt:

POST /jobs/close
Meerkat-Job: sch_83b4f3a9...
Meerkat-Job-Run: GvbDqbNG__YTOY00
Meerkat-Job-Attempt: 1

Your service must ignore an identifier it has already seen. Exactly-once would need a transaction shared between the gateway and your service, so a shared database: precisely the dependency this product does without.

When is the same run sent twice? Only when nobody can know whether you got it:

The last line has three bounds. Three attempts at most, so that a call that brings a gateway down does not bring every gateway down in turn. Never later than catchUp, the same rule as a turn missed while the gateway was down. And how soon: at once when the gateway stopped cleanly - a rolling deployment hands its calls in flight over as it leaves - and when the lease runs out, five minutes, when it died.

Long work answers 202

The call starts the work; it does not wait for it. A service answering 202 Accepted keeps the run open and reports for itself:

PATCH /api/schedules/{id}/run
{"run": "GvbDqbNG__YTOY00", "state": "running", "progress": 60}

and at the end {"state": "done", "detail": "12000 rows"}. That is what makes a three-hour job expressible without a three-hour HTTP request.

With which token? Yours, the one that created the schedule, on the internal plane like everything else. The scheduled call brought no token with it: its identity was posed inside the gateway, and never travelled on a wire.

Every report renews the lease. Say nothing for five minutes and the run is closed as lost rather than left running for ever - and it is not sent again: the 202 said the work was yours.

Any other answer closes the run there and then: 2xx succeeded, the rest failed, with the status and what the answer said - an error page is cut down to the sentence a human reads on it, never to its doctype.

When the service is down

Nothing special happens, and that is the point: the call comes in by the front door, so it gets what a browser would have got. The gateway answers 502 for a service it cannot reach and 504 for one that does not answer in time, the run closes as failed, and the console keeps the sentence: "502 Bad Gateway: Unavailable This application is not responding".

• Three attempts, then the next turn. A failure worth trying again - see below - is tried again 30 seconds later, then 2 minutes later, and that is all. A service down all night costs three calls and then one per cadence, never one per second.
• No stuck run. The failure closes the turn there and then; the lease has nothing to reclaim, and the schedule is not held by a turn that will never come back.
• No contagion. A schedule that fails suspends no other, and does not suspend itself: pausing is an operator's decision. Each call is made on its own, too: a service that takes its time holds its own call, and nobody else's.
• A call that does not answer within the schedule's timeout is closed by us, and says so - "no answer within the 3s this schedule allows" - rather than letting it read as a service breaking when it is us who stopped waiting.

So a service that is down reads as a service that is down, and is fixed by turning it back on: nothing to replay, nothing to unblock.

Which failures are tried again

Behind a scheduled call there is an internal service, so a handful of answers are usually a moment rather than a verdict - a gateway that has just restarted, a version still rolling out:

An attempt that is tried again is a new run, with its own identifier: a service that deduplicates would have thrown away a call it never acted on. It is the same turn, so the attempts count together - three at most - and the history links them.

Two bounds beyond the three attempts: the schedule's catchUp, because a call only worth making on time is not worth making twenty minutes later, and the growing wait between attempts, because what is being waited for is a service coming back up.

When the service cannot run it yet

Nothing is broken, the work simply cannot be done now: the extract is not published, a dependency has not answered. The service knows why, and it knows when to come back - so it says so, rather than leaving the gateway to guess:

HTTP/1.1 424 Failed Dependency
Retry-After: 600

the daily extract is not published yet

The turn comes back then. 424 and not 503: a 503 says "I am down", which is what trying again already covers, while 424 says "I am fine, what I needed is not" - which only the service can know.

For a job accepted with a 202, the same answer rides on the report:

{"run": "GvbDqbNG__YTOY00", "state": "failed",
 "detail": "the daily extract is not published yet", "retryIn": "PT10M"}

Either way, the reason stays on the run that gave it, and the turn that follows points back at it: the history reads "not published yet, put off to 10:15, done" as one chain.

Three bounds, and they are clamped rather than refused - a reasonable answer should never cost a turn: a minute at the soonest, a day at the furthest, and five in a row at most. A service that has asked five times is not waiting for a moment, it is broken: the turn is let go, the schedule's own cadence takes over, and the screen says why.

The API, and where it lives

On the internal plane, port 7070: neither the port your applications answer on, nor the console's. A scheduled call is a service the gateway provides to the backends behind it: no browser calls it. A backend does, from inside the cluster, by the gateway's internal name.

http://meerkat:7070/api/schedules

In HTTPS on 7443 once a certificate is placed on the internal plane; the scheduler's page gives the address, as the runtime names it.

That port is never put behind an ingress, and it answers tokens only: a browser session is refused there. Inside the cluster is a place, not a credential - any pod can reach a ClusterIP - so nothing on this port gives any power without a token.

What the console does, and does not

The console reads the same schedules, on its own plane, and acts on those that exist: pause, resume, run now, replay a turn, delete. It creates and changes none. There is no button for it, and the control plane refuses POST, PUT and the run report from a console session or an operator's token, naming the internal plane in its answer. A schedule is written by the service that needs it.

The token

A token whose perimeter is schedules, minted on the console (Infra, Access tokens) and used on the internal plane. It opens this API and nothing else - not the configuration, not the accounts, not the routes, and nothing at all on the console's port. Narrow on purpose: it lives in a deployment manifest, often in another team's repository, and it is the one nobody remembers to rotate.

What the calls may reach is not decided here: it is the schedule's own roles field. So one backend keeps one token and schedules for as many different endpoints as it serves - a token per endpoint would be one more secret to rotate, for a question the schedule already answers.

The ids are ours

POST creates and hands back the id; everything else takes it. Would rather not keep it? File the schedule under your own metadata and ask for it back that way - which is what a reconciliation loop does.

A schedule names a route, never a URL: a service that moves keeps its schedules.

{
  "name": "station 42, hourly poll",
  "roles": ["station_fetch"],
  "method": "POST",
  "routeId": "stations-api",
  "path": "/fetch/station",
  "every": "PT1H",
  "headers": { "X-Action": "fetch", "X-Api-Key": "${stations-key}" },
  "body": { "kind": "poll", "region": "west", "station": "42" },
  "metadata": { "svc": "stations", "station": "42", "env": "prod" }
}

The verb, the headers, the body

method is the verb of the outgoing call, the one the gateway will send to the service: POST by default, with POST, PUT, PATCH and DELETE accepted. GET is refused, and the message says why: a scheduled call is an action, and a schedule that only reads is a schedule whose answer nobody looks at.

headers carries what the service asked to be told, beyond what the gateway writes by itself. Ten at most. A value may be a vault reference - ${stations-key} or $stations-key - resolved at the moment of the call, against the application's scope or the organisation's when the schedule has one: the row keeps the reference, so the secret appears neither in this API's answers nor in the console. A name the vault does not hold goes out verbatim, $typo, rather than becoming an empty header, which would fail in a far more confusing way.

Five names are refused as the schedule is written, each with its reason: Authorization, because the gateway writes it and it is the identity of the account the schedule runs as; Host, because the route decides it; Meerkat-Job, Meerkat-Job-Run and Meerkat-Job-Attempt, because the gateway writes them and they are how your service recognises a turn it has already seen.

body is JSON. An object or an array goes out as it stands, with Content-Type: application/json. A JSON string goes out as its content, text/plain; charset=utf-8 by default: that is how a form, an XML document or a line of text is sent from a field that is otherwise JSON. An explicit contentType always wins, since it is the one the service asked for.

Metadata: the service's own filing system

metadata is an open object, yours: any keys you like, text values, which Meerkat stores and matches on without ever trying to know what they mean. It is what makes one token enough - it is the metadata that tells one schedule from a thousand.

You ask for them back the same way:

# one station
curl "http://meerkat:9090/api/schedules?meta.station=42" -H "$AUTH"

# two conditions, both required
curl "http://meerkat:9090/api/schedules?meta.kind=poll&meta.region=west" -H "$AUTH"

# an expression, for a fleet
curl "http://meerkat:9090/api/schedules?meta.station=~^[0-9]{1,2}$" -H "$AUTH"

meta.<key>=<value> matches exactly, meta.<key>=~<expression> matches by regular expression. Two more filters, on what the gateway knows by itself: tenant and route. One that does not compile is a refusal saying so, never an empty list that would read as "there is nothing".

Twenty keys at most per schedule: it is a filing system, not a place to keep your data.

A cadence, a calendar, or one date

A schedule says when one of three ways, never two.

every, a cadence: an ISO 8601 duration - PT30M, PT6H, P1D - counted from the end of the last run. The shortest is one minute. It is what "every six hours" wants, and it is what keeps a slow job from firing again the instant it returns.

cron, a calendar: the five standard fields, with lists, ranges, steps, the names MON-SUN and JAN-DEC, and the shortcuts @hourly, @daily, @weekly, @monthly, @yearly.

{
  "name": "monday report",
  "routeId": "orders-api",
  "method": "POST",
  "path": "/jobs/report",
  "cron": "0 3 * * MON",
  "timezone": "Europe/Paris"
}

at, a single date: one RFC 3339 moment, with its offset - 2026-10-03T04:00:00Z, 2026-10-03T06:00:00+02:00. The call goes out then, once, and the schedule is finished: nothing is armed after it.

{
  "name": "cart 4471, reminder",
  "routeId": "orders-api",
  "path": "/jobs/remind",
  "at": "2026-10-03T04:00:00Z",
  "metadata": { "cart": "4471" }
}

That is the delayed action: the trigger is something that happened - a basket left behind, a booking made, a document deposited - rather than anything on a calendar. Your service handles what happened, posts the date it wants to be called back at, and forgets about it.

A few things follow from "once":

• The date carries its own offset, so timezone means nothing beside it and is refused. startAt is refused too: it places the first turn of something that repeats, and a single date is its own first turn.
• A date already past is not an error: the call goes out at once if catchUp still allows it, and is dropped otherwise - exactly like a turn missed while the gateway was down.
• The row stays once it has gone, with its result, so somebody can see that it went out. It is swept after a retention root chooses on the Scheduler screen, a month by default. A schedule that repeats is never swept.
• Moving its date with a PUT moves the turn: that is how a delayed action is pushed back, and how a finished one is given another date.

Take the calendar for "every Monday at three" or "the first of the month": a cadence cannot say it, and it drifts a little every turn.

Take the cadence for a period. A cron expresses none: its fields are positions in a calendar, not steps in a sequence.

0 */7 * * *    00:00, 07:00, 14:00, 21:00, then midnight  -> a 3-hour gap
*/45 * * * *   0, 45, then 60, then 105                   -> a 15-minute gap
*/20 * * * *   0, 20, 40, 60                              -> this one lands right

*/n is a period only when n divides 60 or 24. "Every 90 minutes" is written PT90M, and no other way. A cadence also has no zone to choose and no clock-change night to cross, and fifty schedules on PT1H spread themselves out where fifty on 0 * * * * all go out on the same second.

As in every crontab, when both day fields are restricted a day matching one or the other is a match: 0 0 1 * MON is the first of the month and every Monday.

A calendar is read somewhere

timezone is an IANA name - Europe/Paris - and UTC when you say nothing: "three in the morning" means three UTC until you write down where. A zone this gateway does not know is refused as it is written, rather than quietly falling back to UTC.

The two nights that matter are handled: the hour that does not exist in spring moves the turn, the one that happens twice in autumn fires once. A cadence ignores the field.

Three settings that avoid three surprises

What each turn leaves behind

The schedule itself keeps the last result, which is what a list shows. Every turn that ended is also kept on its own, and that is what answers "since when is this failing", "did last night's close run" and "what did it answer":

curl "http://meerkat:9090/api/schedules/sch_9f2c/runs" -H "$AUTH"

[
  {
    "id": "run-17906f3c9d2a4e10-9f2c11",
    "runId": "GvbDqbNG__YTOY00",
    "attempt": 1,
    "node": "meerkat-7d9c",
    "startedAt": 1790770190,
    "endedAt": 1790770191,
    "state": "done",
    "status": 200,
    "detail": "200 OK"
  }
]

Four ways a turn ends, and the difference matters:

attempt says which attempt ended the turn: 2 means a gateway stopped before the answer and another sent the same call again. cause and ofRun are the chain - an ordinary turn says nothing, a replay names the run it continues.

Running a turn again

A turn that was dropped, or that failed for a reason since fixed, is asked for again by name:

curl -X POST "http://meerkat:9090/api/schedules/sch_9f2c/run" -H "$AUTH" \
  -H "Content-Type: application/json" \
  -d '{"replayOf":"run-17906f3c9d2a4e10-9f2c11"}'

It goes out as a new run, with a new identifier and today's payload - the schedule as it stands now, not as it stood that night. What it replays is written in the history, so the two read as one chain. Without a body, the same call is the plain "run now".

The history is swept on the same retention as a finished delayed action - a month by default, root's to change - and goes with the schedule when it is deleted.

When it looks, and in a cluster

There is no tick. The gateway sleeps until the next thing owed and wakes on the second. Writing a schedule, pausing it, bringing it forward or closing a run wakes it at once; a backstop covers the rest, once a minute.

Several gateways share one table and nothing takes a lock: taking a turn is a conditional UPDATE, so two gateways at the same instant produce one winner. The calls spread over the gateways, several at a time on each - a slow service holds its own call and nobody else's.

What a cluster really adds is the lease: a run nobody says anything about for five minutes is settled by whichever gateway sees it first, sent again or closed as lost.

While a run is in flight nothing more is owed: "run now" answers 409, and the run's close arms the next turn.

What it is not

A message queue. No fan-out to several consumers, no acknowledgement, no dead letters: one schedule, one call, at least once. If you need the other thing, you need a broker.

What the operator sees

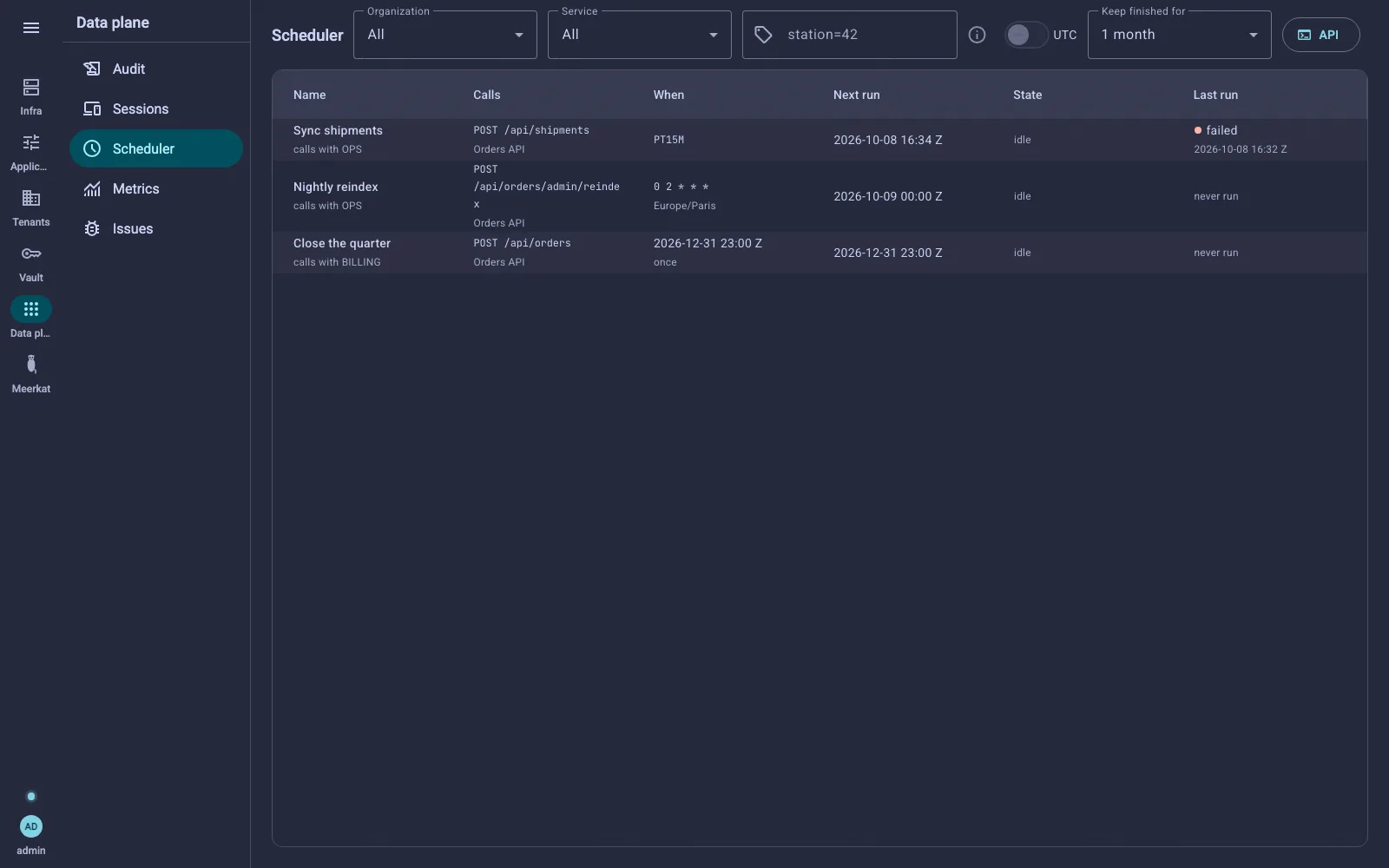

Data plane, Scheduler lists everything scheduled, filtered by organisation and service, updated live: a run starting, advancing and finishing appears without refreshing anything. Three actions live there, and they are the ones wanted at two in the morning: pause (and resume), bring the next turn forward, remove. There is no button to create or change one, by decision: a schedule belongs to the service that needs it, which writes it through the API, on the internal plane, from its own screens.

A run in flight says where it stands - calling, waiting for the answer, or accepted, the service took the work - and which attempt it is when a gateway stopped before the answer. Its next turn reads "after this run": the close arms it, and "run now" waits for that.

A schedule's drawer keeps every turn it ran: when it ended, how, what answered, which node made the call, which attempt it was - and a button to run a dropped or failed one again.

A delayed action that has gone reads "finished" and keeps its result on screen until the sweep. A switch hides them when a service posts enough of them to bury the rest, and root chooses beside it how long they are kept.

The hours are written in the operator's own zone - the one on their profile, set once and read by both planes - or in UTC, on a button that says which is showing: "2:24 AM" means nothing until it says whose 2:24 it is.

An API button opens, in the same drawer, the mechanism and the API: the commands and the payload already filled in with this installation's address, because the screen creates nothing and the next step is a call the service makes itself.

A schedule's drawer keeps, folded away, the payload that recreates it: the fields a row cannot show - the body sent, the three settings - and a worked example for whoever has to write the next one.

The Metadata filter there takes what the API takes - station=42, or station=~^st- - because an operator looking for one schedule in a fleet looks for it by what the service wrote on it.

Creating a schedule is not among them, deliberately: a schedule runs as an account, and the administrators reading that screen are not the accounts it should run as. The console's plane refuses it too, in as many words: writing a schedule belongs to the service, with its own token, on the internal plane.
