Built-in pages

Application > Built-in pages. The pages the gateway serves in its own name: sign-in, sign-up, the second-factor challenge, the unavailable page, the error pages.

One screen, one preview, three tabs on the left: Theme, Layout, Branding. They describe the same page, so the preview never moves, and the theme picker stays under it on all three - trying a colour while judging an arrangement is the normal way round.

The tabs are real routes: a bookmark on the layout gallery comes back to the layout gallery.

Built-in pages on the Theme tab: the six core colours, the contrast and the typography on the left, the two previews on the right with the theme carousel between them

The sign-in page as it is served, dark above and light below, with the theme carousel in the gap. On the left, the colours the theme is made from.

The theme picker

The carousel in the middle of the preview is the list of themes. Click a palette to look at it; click the palette on the nav block to make that theme live. Selected and active are two different things, which is what lets you try a theme without serving it.

The controls between the arrows add a theme (a duplicate of this one, or a start from a preset) and delete one. The active theme cannot be deleted.

Theme

A theme is made the way Material Theme Builder makes one, and it is the same theme: the same six colours give the same schemes, role for role.

Core colours. The primary is the source. Secondary, tertiary, error, neutral (backgrounds and surfaces) and neutral variant (medium emphasis and outlines) are derived from it until you set them - the value shown greyed is the one they are derived as. The cross puts a colour back to derived.
Contrast: standard, medium or high, for both schemes.
Color match is the builder's "stay true to my color inputs": containers keep the tone of the colours given rather than the spec's.
Typography: a display face for the titles and the application's name, a body face for the text and buttons, a code face for codes, keys, fields and labels - each one of fourteen families the gateway ships and serves itself, or the system's. Behind any choice, Noto draws Arabic, Hebrew, Devanagari and Thai; Chinese, Japanese and Korean use the system's fonts. Each family is shown in itself.
Generated roles lists every Material 3 role the colours make, dark and light side by side - read-only, they follow.

Hovering a colour or a role makes what it paints blink in the preview, which is the fastest way to find out what a name means. The preview follows as you pick, on whatever page it shows: a mail and the portal bar are redrawn with the colours on screen too.

The Dark and Light checkboxes in the header decide which schemes the served pages offer at all. Untick one and the pages stop proposing it; you cannot untick both.
Glow is the decorative flow-page effects as one switch: the ambient halo behind the page, the logo and button glows, the app-name gradient. Unchecked gives a flat design.
Export writes the builder's JSON format (core colours, the six schemes, the palettes), with Meerkat's own settings under a key of their own. Import reads a builder export - whether Color match was on is read off the schemes it carries. An export older than the builder's 2025 contrast rules imports by its colours, and the screen says that some roles differ from the file.

A theme typed token by token in an earlier version is converted on upgrade into the six colours that come closest to it: its primary stays, its surfaces and outlines take the Material 3 tones.

Save is on this tab: a theme is an object of its own, and saving it is what changes what a live theme serves.

Layout

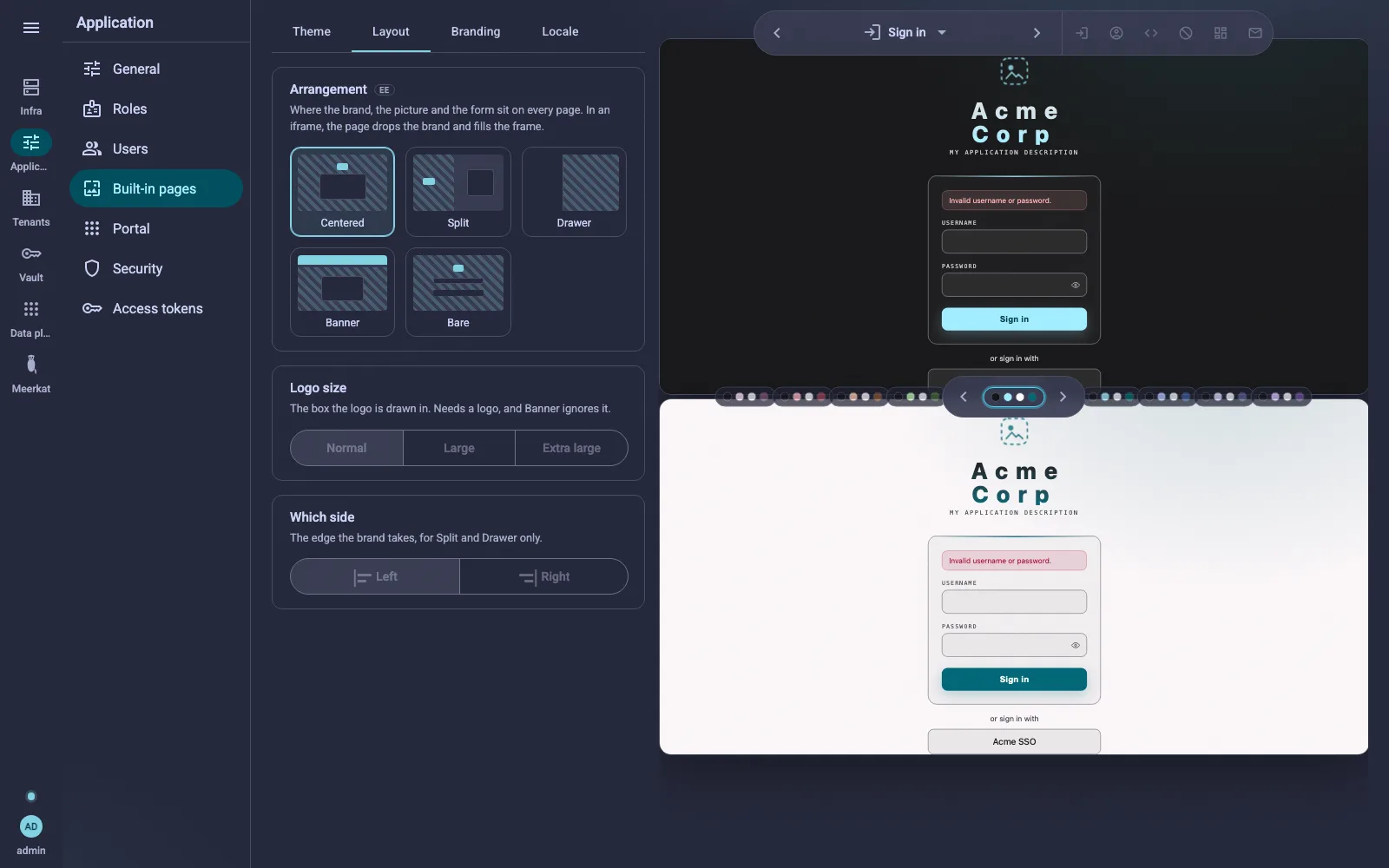

The Layout tab: five arrangements, the logo size and the side, with the previews beside them

Arrangement is a gallery of mock-ups - where the brand, the picture and the form sit. Picking one updates the preview at once.

Enterprise edition: keeping an arrangement other than the centred one. The gallery stays clickable and the preview follows, because seeing an arrangement is what this screen is for; what the licence buys is keeping it.

Logo size - the box the logo is drawn in. A wide wordmark laid in the normal box comes out a quarter of its height; banner draws the mark at its own size. There is nothing to size until a logo is set on the Branding tab.
Which side - the edge the brand takes. Only the arrangements made of halves have a side.

A page opened inside an iframe drops the brand and fills the frame on its own, whichever arrangement is chosen.

Branding

Built-in pages on the Branding tab: application name, tagline, logo, tab icon and background drop zones, and the Meerkat mark card

The name and tagline typed here appear in the preview at once. Below, the Meerkat mark card, capped Enterprise.

The application's identity: name, tagline, logo, tab icon (favicon), and the background picture with its fit (cover, contain, tile) and its dimming. The dark scheme can carry its own picture, or share the light one.

The Meerkat mark has a card of its own, because it is a licence question rather than an identity one: the served pages carry a powered by softwarity/meerkat line at the foot, and removing it is Enterprise.

Enterprise edition: removing the Meerkat mark.

Traps

Selected is not active. Editing a palette changes the theme you are looking at; serving it is the click on the nav block's palette.
The console does not wear this theme. These are the pages the data plane serves to your users. The console has its own look.
The logo size does nothing without a logo, and the side does nothing on an arrangement with no halves. The controls are disabled rather than silent.
A background picture is carried in a package export, not in a plain YAML one. See Configuration.
