Metrics

Data plane, Metrics is what the gateway has really served. Every other screen shows what is configured, and in a configuration a route that is failing and a route nobody calls look identical.

It is at /data-plane/metrics. Root and infra admins only: the figures name every route and every service, which is a map of the installation.

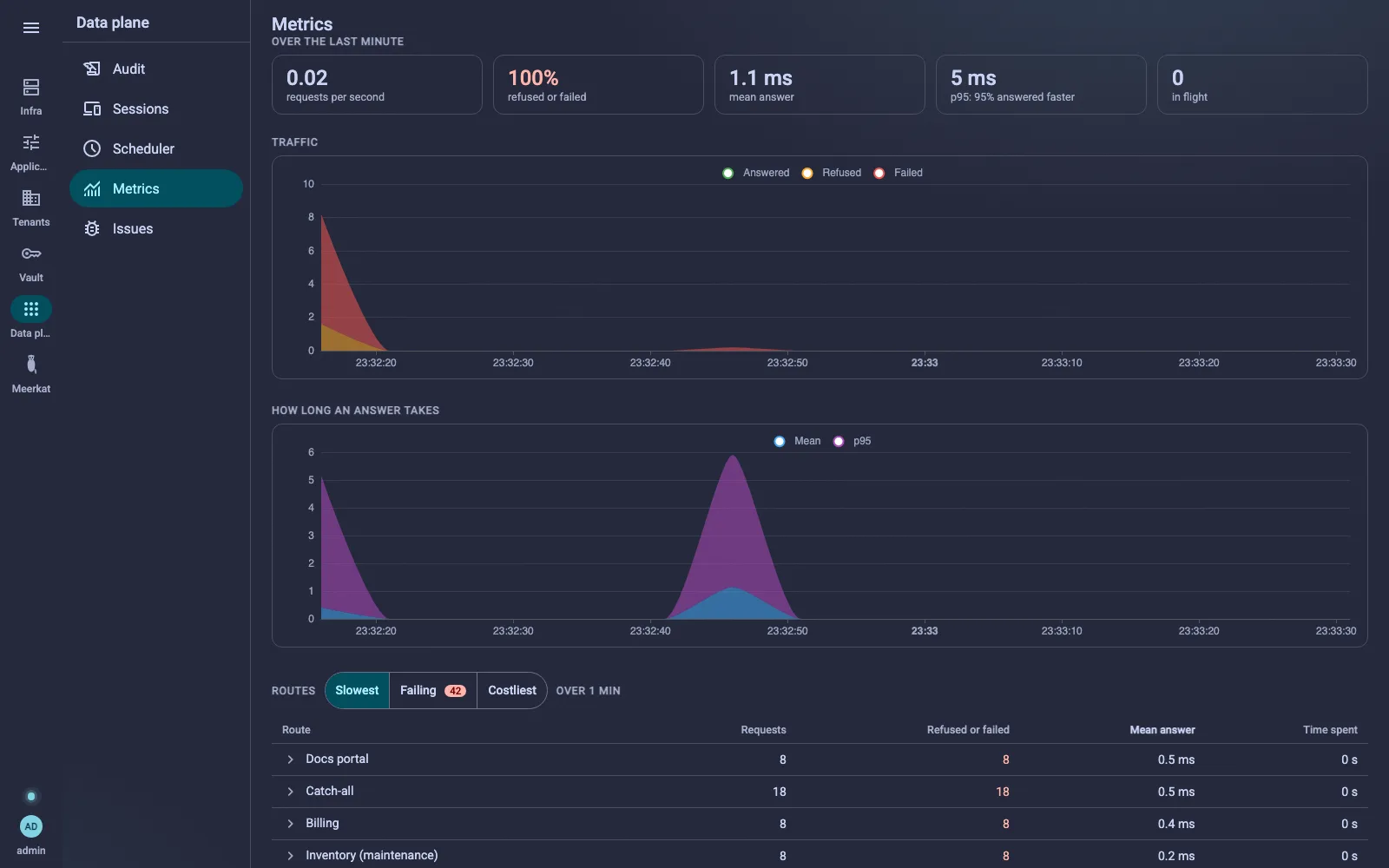

The Metrics screen: five figures over the last minute, the traffic and latency curves, and the ranking of routes

Requests per second, the refused-or-failed share, the mean answer, the p95 and what is in flight; under them the two curves, and the ranking with its three tabs - the failing one carrying its count.

What is on the page

Over the last minute: requests per second, the share refused or failed, the mean answer, the p95 - the time 95% of the answers came under, which the mean hides: ninety fast answers and ten of three seconds average out to something nobody waited for - and how many requests are in flight.
Traffic and How long an answer takes: two curves, the second drawing the mean and the p95 side by side, fed by the gateway pushing an interval every five seconds. Nothing is polled.
Routes, ranked on one of three axes - Slowest, Failing, Costliest - over the window the samples cover. The Failing tab carries its count, so it catches the eye without anyone switching tabs to find out whether there is anything to switch for.

The ranking of routes, scrolled: five routes with their requests, failures, mean answer and time spent

Further down the same screen: the five routes over the minutes the samples cover. Inventory (maintenance) answers every request in under a millisecond and counts them all as refused - which is exactly what a maintenance route does.

A route opens on its endpoints, in the same table and over the same period, so the lines add up. The unit is the template (/orders/{id}), never the raw path: a raw path would be one series per order.

An endpoint row marked deduced was inferred from the shape of the paths this gateway saw, not from a spec - the segments that looked like identifiers were folded away. It can be wrong, since a year reads like an id. Declare an OpenAPI spec on the route for exact names.

The curves are drawn even when empty: nothing measured yet and not connected are two answers a reader has to be able to tell apart.

The window is held in memory and starts again when the gateway restarts. On a cluster, samples are summed over every node, and an endpoint is counted on the node that answered - the screen says so where it matters.

Keeping a history

The counters leave the gateway one way: pushed over OTLP to a collector, from Infra, OpenTelemetry, tab Metrics, and written by the collector into Prometheus. See metrics.

Enterprise edition: getting the counters out. The counters and this screen are in both editions - curves with nothing to install is what the community image promises; what is sold is externalising them into a stack you already run.

Traps

The counters are per node. Each node pushes its own, under its own service.instance.id, and a dashboard sums them.
A restart resets the curves. The history is in Prometheus, when the counters are pushed there.
A route nobody has called has nothing to say, and neither do its endpoints. That is not a failure.
Deduced templates can be wrong. Treat them as a hint until a spec is declared.
