Configuration

Meerkat > Configuration, root only. Three tabs, because three different questions were sharing one page.

What travels in a configuration: routes, roles, organisations and their groups, authorities, OIDC clients, mail relay, themes and gateway settings. An OIDC client's secret travels as its sha256 only (secretHash), never in clear: the client imported elsewhere keeps the same secret, and the application keeps working with nothing to change. What stays behind: users and who belongs where, sessions, and the values of the vault (a configuration names the entries it uses, never what they hold) - they are not configuration, they are what this gateway lives with.

Each tab is a route of its own, so a bookmark comes back to it.

The current configuration on the first row, marked as matching Known-good baseline, and two shelf rows under it - one of which carries the Current chip. Import a file works in both editions; Import from git carries the Enterprise mark.

Management

The first row is what this gateway serves. The rows under it are copies on a shelf. Saving, duplicating or deleting one of those changes nothing about what is served.

The icon on the first row is a comparison, and it is the most useful thing on the screen:

The shelf row it was set from carries the same verdict as a chip: Current, or Current, changed.

Actions. The current row saves under a name and exports. A shelf row can be set as current, duplicated, exported or deleted. Clicking any row opens its file in the drawer, to read.

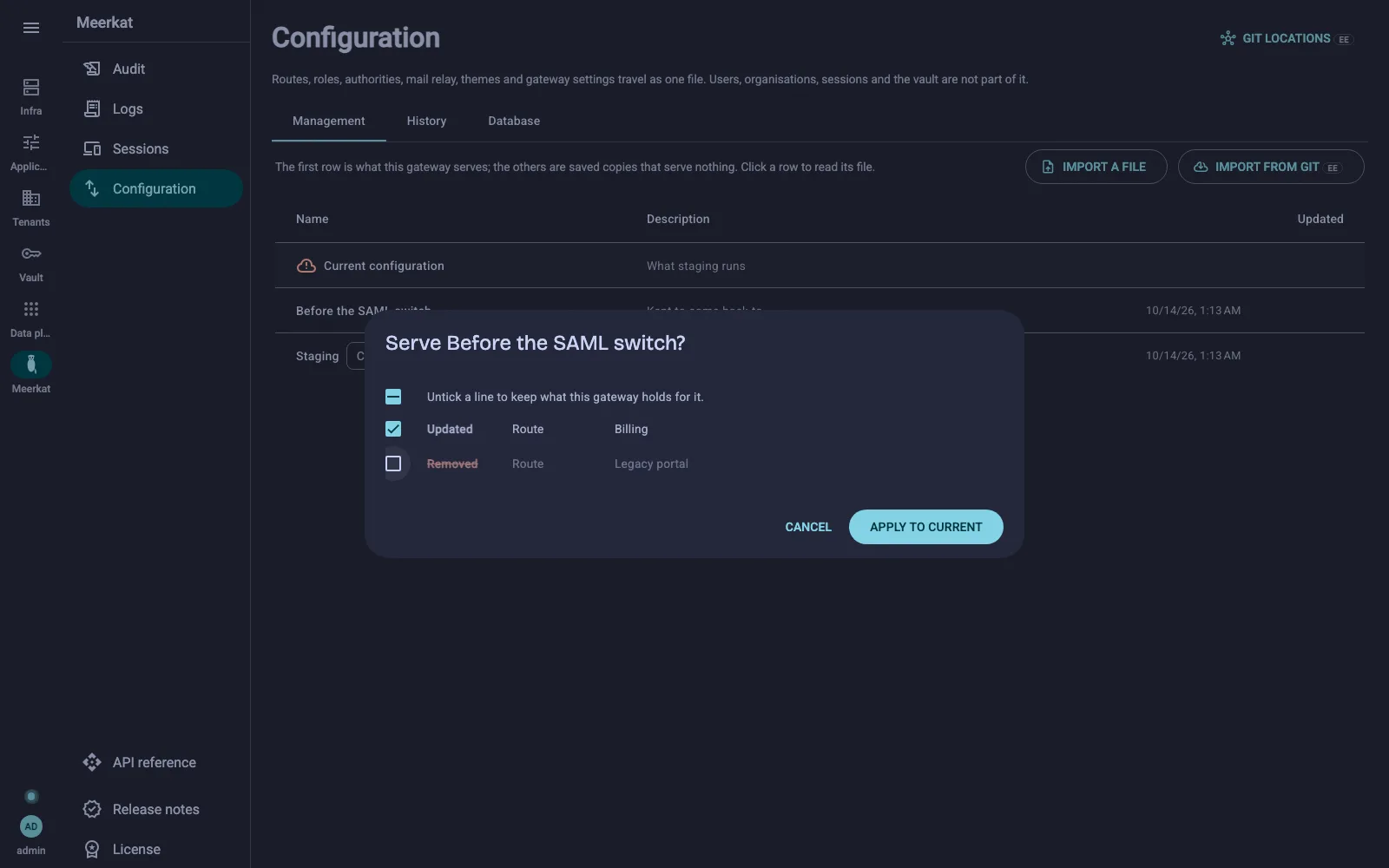

Only Set as current crosses from the shelf to the gateway, so it is the only action that asks - and it asks with the list of what it would change, plus a warning first when what is running was never saved: that is the one move with nothing to come back to.

Each line of that list can be unticked, and an unticked line keeps what the gateway holds for it, whatever the line said: a route the configuration would remove stays, an object it would change keeps its current version, an object it would add is not created. The box above the lines ticks or unticks them all; Apply to current is off while none is ticked, and turns red only while something would still be removed. The same choice is offered when a file is imported onto the gateway and when the running document is edited. Afterwards the gateway is no longer exactly the saved configuration, and the screen says so: it has changed since that configuration was saved, and saving it again records what you chose. A line the rest of the configuration cannot live without is refused with what is in the way, and nothing is applied half.

Exporting

The dialog says what the file carries and what it does not, then offers two shapes:

• Plain YAML - text only. Images stay behind, and an import keeps whatever is in place.
• Package - a zip: the configuration reads and diffs as text, images sit beside it as files.

Importing

Import a file takes .yaml, .yml, .json or .zip, and asks where it should land:

1. Save it under a name - onto the shelf, touching nothing.
2. Replace the current one - what is not in the file goes away.
3. Add to the current one - what is in the file is added or updated, and nothing is removed.

The two that touch the gateway show their plan first, object by object. If the file refers to vault entries this gateway does not have, a second dialog lists them so you can fill them in straight away.

Comparing a configuration

Every saved row offers Compare, and the dialog opens on what this gateway runs now: what serving that configuration would change here - added, updated, removed, object by object, with the fields that moved inside an update - the same plan as Set as current, read without applying anything. What runs needs no name to be compared. GET /api/configurations/{id}/plan.

The list also offers the other saved configurations: the dialog then lists what changes going from the first to the second, what runs left out - the question asked of a customer's configuration and the template it was made from, before touching either. GET /api/configurations/{id}/compare/{other}.

Git repository

Enterprise edition. The configurations can live in a git repository: a history with names on it, review before a change, and one source of truth across several installations.

An export is public by construction - a declared secret field leaves as its ${name} reference or not at all - which is what makes putting one in a repository a reasonable thing to do. And its bytes are deterministic, so two exports of the same state produce the same file and a diff shows only what moved.

Locations, not branches

A git location is a repository, a branch and a directory inside it. Several locations share one repository, one directory per platform:

platforms/acme/meerkat.yaml
platforms/acme/assets/logo.png
platforms/foo/meerkat.yaml

That layout is the one an export already produces, so there is no file to pick and nothing to agree on.

The loop: pull, read, activate

Import from git reads a location into a saved configuration and applies nothing. The gateway goes on serving what it served; the answer is the plan - what activating it would add, change and remove, plus the vault entries it expects and this installation has not got, each line tickable. You read that, and Apply to current in that same window serves it, the unticked lines kept as the gateway holds them; Close keeps it saved to serve later, from its row.

This is deliberate and it is not negotiable: whoever can write to that branch must not be able to reconfigure a gateway. There is no continuous reconciliation, and no branch is watched.

Export to git commits the saved copy - not the running state, so save it under a name first if that is what you want - and the commit is attributed to the operator who clicked. That is the point of doing this in the product rather than in a script: a repository whose history reads meerkat for every change answers nothing six months later.

The two directions are plain: a pull replaces the saved configuration with what the repository holds, a push replaces what the location's directory holds with the saved configuration - whatever somebody else put there. Nothing is lost: what a push replaced is the previous commit of the history. Only the location's directory is written; another platform's directory in the same repository is left alone. To see the repository's version before choosing, pull it into a new configuration (Import from git) and compare.

A row says where it stands: synced with the date of the last push or pull, changed here since, or never pushed. "Synced" is what this gateway knows at its last exchange - whether somebody changed the repository since is a pull away.

The token

HTTPS with a token. The token is a vault reference, never a literal - a location is a row the console reads and a snapshot carries.

What to grant, and the username to send beside the token, differ per forge - and they all report a wrong username as the same authentication failed a wrong token gives, which is how a perfectly good token costs somebody an afternoon. So the form starts with the forge: GitHub, GitLab, Bitbucket Cloud, Azure DevOps, Gitea / Forgejo, or another git server. A known forge fills in its host - change it for a self-hosted GitLab or Forgejo - and you type only the repository (owner/repository); the URL is made from the two. Under it, the steps that make the token in that forge's own menus, with a link to the token page of this very repository, and the username it sends - asked only where the forge leaves it to you:

Check proves the repository answers, the credential is accepted and the branch exists, and writes nothing - so a wrong token is found on the screen that sets it.

From an agent

list_git_locations, pull_configuration and push_configuration (agents). An agent that asks the gateway to push holds no credential and needs no checkout: the token in the vault, scoped to one repository, is the one doing the work.

History

The gateway keeps its own tape: one restore point per change that moves the configuration's fingerprint, newest first, grouped by day. Rows read as time and person first, then the words the audit trail used for the same change at the same second.

Open a point to read its file. Restore shows its plan, like any other change, before going back, and leaves a point of its own: the tape never loses the state it was asked to leave. A point can also be saved onto the shelf under a name, which is how what it looked like on Tuesday becomes a configuration you keep.

A saved configuration and a restore point are different objects on purpose: one is intentional and named (the Acme setup), the other automatic and timestamped (what it looked like at 14:32).

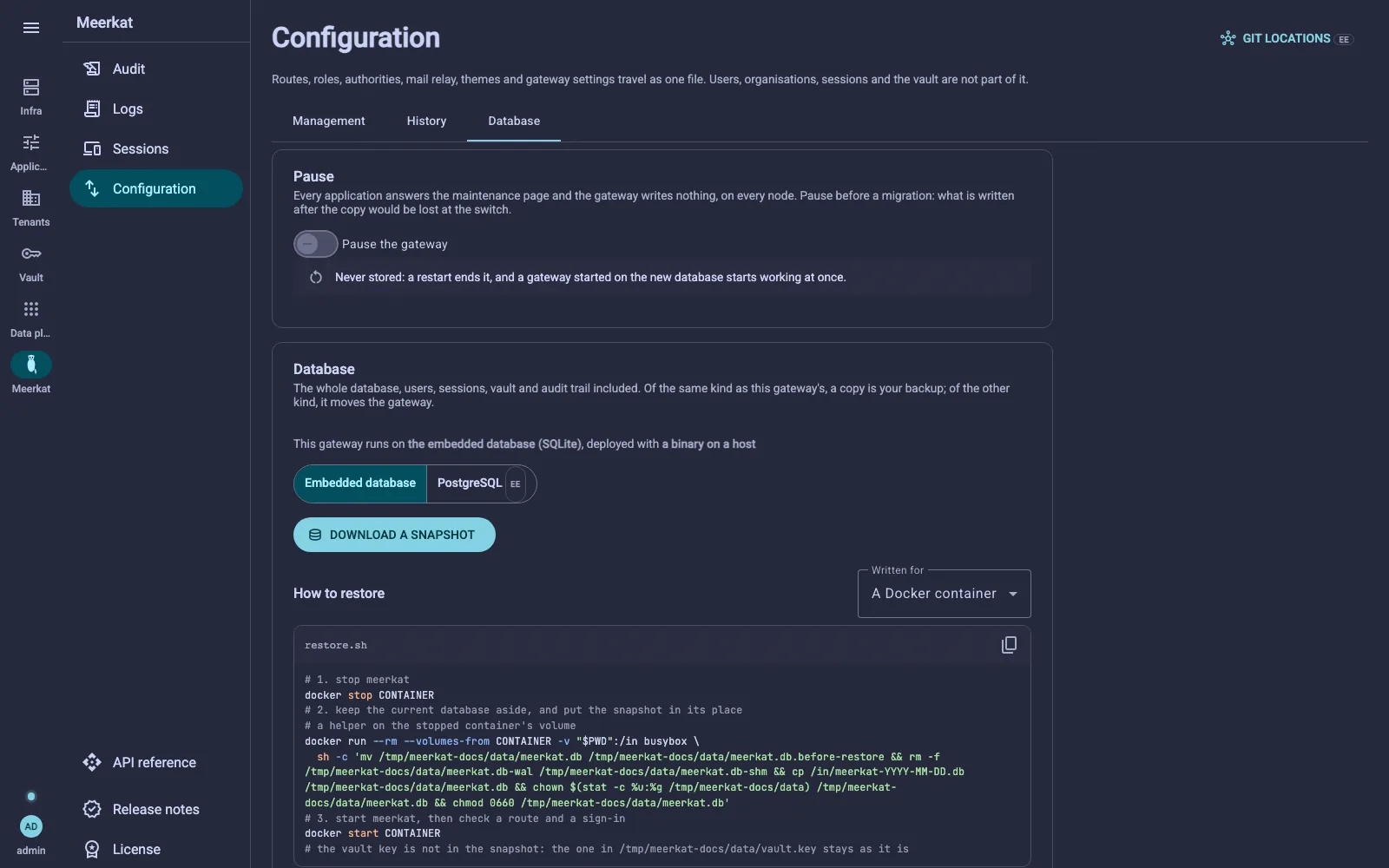

Database

A coherent copy of the whole database, taken while the gateway runs: routes and vault, but also users, organisations, sessions and the audit trail. This is what a backup restores; a configuration export is what a second gateway reproduces. The tab was called Snapshot until it also moved the database; the old address still leads here.

Meerkat takes the snapshot itself, because copying a live database with cp can catch it mid-write and nothing says so until the day you restore it. Scheduling, retention and shipping it off the host belong to your backup tool.

There is no restore button, deliberately. A database cannot be swapped under the process holding it open. The tab prints the exact commands instead, with this installation's own paths, for the platform it runs on - the runtime says which: a Kubernetes or OpenShift Deployment and its Helm release, a Swarm service, a compose project, a container. Written for switches to another, for a runtime the gateway could not ask. The old file is kept aside until the new one has proven itself.

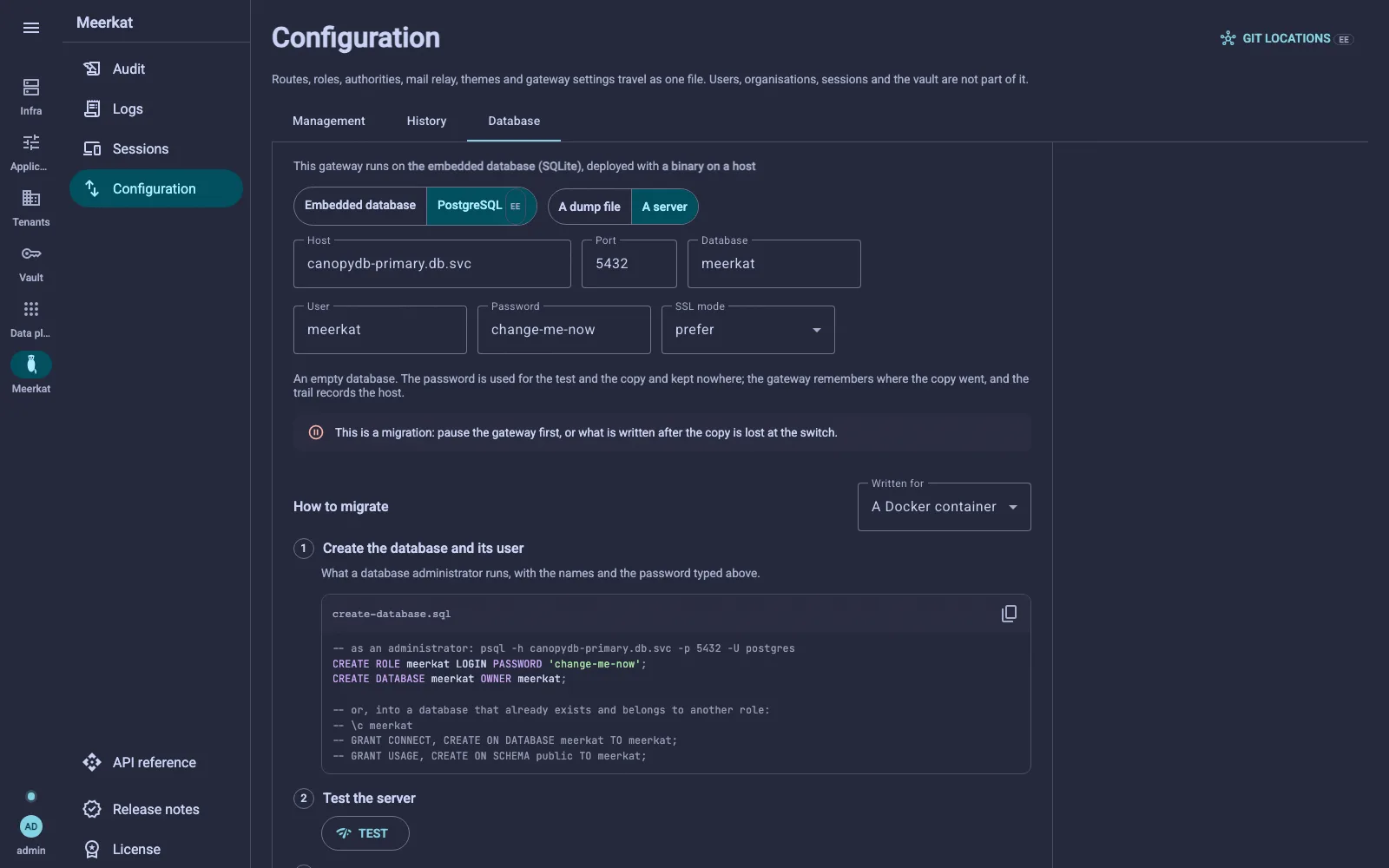

The same tab moves the database, between the embedded one and PostgreSQL, into a file or straight into a server. A move is one numbered procedure, shown from the start: create the database and its user (the SQL a database administrator runs), test the server, pause, copy, switch the deployment, check a route and a sign-in, and the way back - each step ticked as it is done.

The gateway remembers the copy - where it went and how much it carried, never the password - so a reload in the middle of a migration, on any node, comes back to the same procedure. Dismiss forgets it; it goes by itself once the gateway runs on that database. See moving the database.

Traps

• An export does not carry the vault. Take the vault file too, or the second gateway comes up with references pointing at nothing.
• Replace prunes, Add does not. Read the plan; it is the difference between a merge and a wipe.
• A configuration is not a backup. Users and sessions are not in it. That is what the Database tab is for.
• The community image leaves the Enterprise parts out. A configuration exported from an Enterprise gateway imports into a community one without its working hours, layout, hidden mark, OpenTelemetry export, directories, OIDC clients and ACME authorities and orders (the HTTPS redirect and HSTS stay); the plan lists what it left out. A route bound to an OIDC client keeps its mechanism, unserved.
• A route does not lose its OIDC client in an import. A client a route still signs people into is kept, even by a pruning document that does not list it, so a configuration exported before clients travelled still activates. A route naming a client that neither the document nor the gateway declares imports as it is, and the plan says so: declare the client under OIDC / JWT.
• Pulling from git changes nothing. It shelves a document and shows you the plan. The gateway switches when somebody activates it, not when the repository moves.
• A location belongs to this installation, not to the document. It is never exported: a configuration that could repoint the gateway at another repository would overwrite another customer's directory on the next push.
