Domains & TLS

Infra > Domains & TLS. The planes of this gateway, one tab each: the certificates each one serves, its public names, and whether the gateway or a proxy in front serves them over HTTPS. It sits in the Infra plane for the same reason the relay does: it is a property of the installation, not of the application it serves.

There is no switch HTTPS on. A certificate placed on a plane is what opens its door, and removing it is what closes it. A switch that can be on with nothing behind it is a switch that lies.

The ACME, Platform certificates and On a local machine buttons sit in the banner, beside the title; everything else is in the tab of the plane it concerns.

Plane by plane

A certificate answers for the names it carries - read from the material, not typed beside it. One certificate can carry several names, a wildcard (*.acme.example) or an IP address, and serves every one of them.

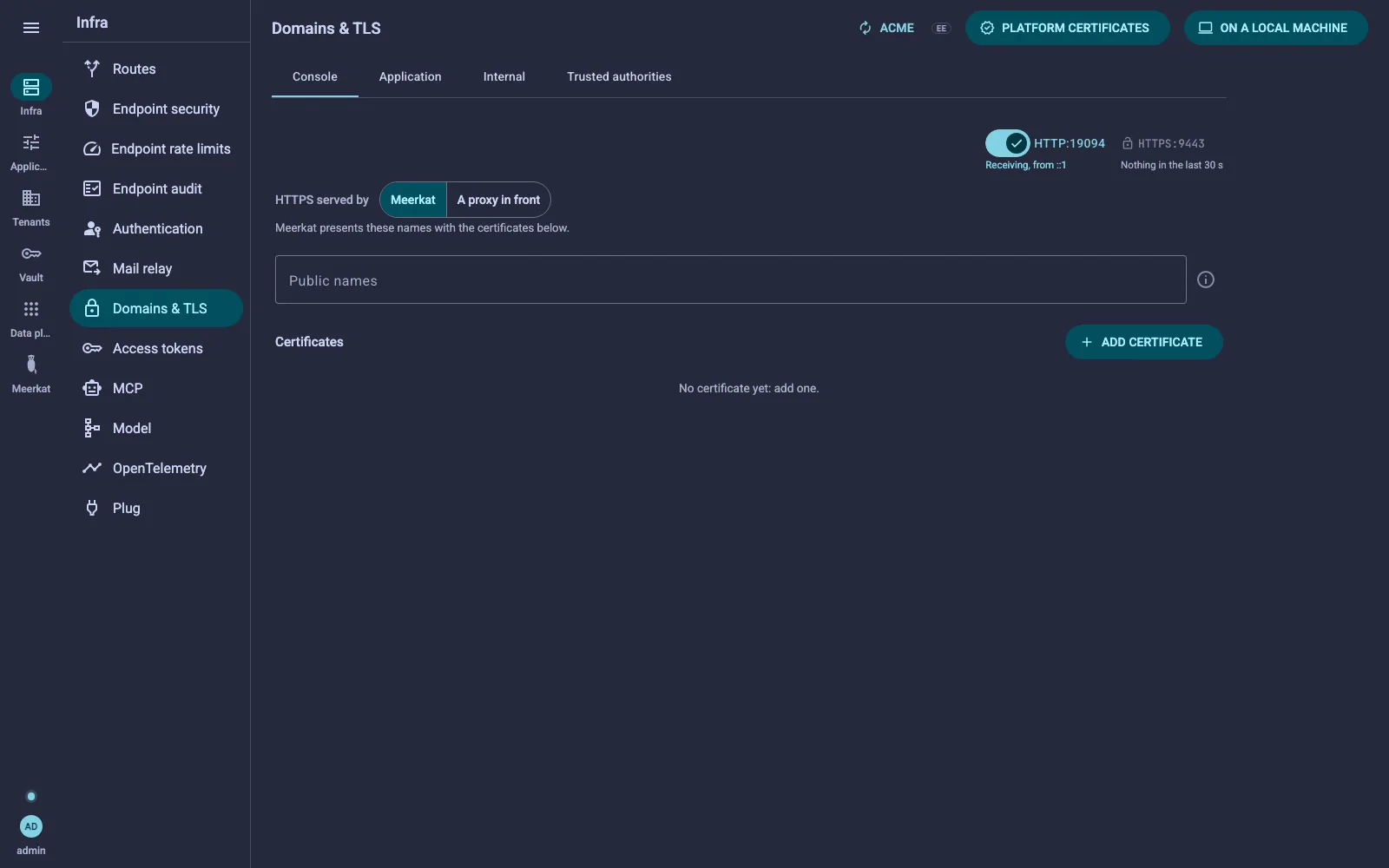

The screen gives each plane a tab, under the name the runtime gives it: Console, Application and Internal, the last one being what the services behind the gateway call. A fourth tab, Trusted authorities, holds what the gateway accepts when it calls an upstream (see Trusted authorities). A small lock on a plane's tab says its HTTPS is open. Each plane's tab holds its Certificates list and its own Add certificate menu. Each line of the list gives a certificate's names, where it came from (Imported, Self-signed, Signed on request, File system, cert-manager) and how long it lasts.

• A certificate added from a plane's menu lands on that plane, served there at once. The same file may be added again from another plane's tab, to be served there too.
• The bin of a certificate's line is the one way out. When another plane serves the certificate too, it only leaves this plane, after a confirmation that names where it stays; when this plane is the only one, the certificate is deleted, its private key with it - and its Certificate too, when it was asked of cert-manager.
• Unassigned certificates appears only when a certificate is on no plane - one a replacement took off, for instance (see Two certificates for one name). Click one of its plane tags to place it there, or delete it.

The first line of a tab gives, on the right, the plane's two ports as the world reaches them - HTTP:19090 HTTPS:19443 - HTTP with its switch, HTTPS with a lock, closed when a certificate is served there, red when the deployment does not publish it (see HTTP and HTTPS ports). On the left, the Internal names: the names the runtime reaches the plane by, ticked when a certificate served there carries them. They show on Internal, and on Console or Application when a proxy is in front (see Who serves the public names). Under a plane the gateway serves itself, the HTTPS links of its names. When the console is served over HTTPS by Meerkat and none of its certificates carries the name it was reached by, the plane says so: the browser would get a certificate for another name, and refuse it. On the Internal plane, the Internal names are every name the runtime resolves to it - the four forms of a Kubernetes or OpenShift Service, a Swarm service and its short name in the stack, a compose service and its container. A certificate that carries none of them is refused: it cannot land there. The other way round, a Console or Application plane the gateway serves itself refuses a certificate that carries only those names - they reach the internal plane's ports, never theirs; behind a proxy, names inside the runtime are precisely what its certificate carries (see Who serves the public names). The import dialog says it as soon as a PEM is pasted, and the file system dialog beside each mounted certificate. Over HTTPS the address given to the services is the first of these names the certificate carries. The Platform certificates button, in the banner, opens a how-to for the platform the gateway runs on - Kubernetes (cert-manager), OpenShift (its service CA), an authority of your own, Swarm, compose: where a certificate for a service's names comes from, for the Internal plane, and for the hop from a proxy in front to the Console or the Application. Its templates are written for any service of the platform, since all of them serve HTTPS the same way, with <service> and <namespace> to fill in, and say to add the authority to Trusted authorities so the gateway calls them over HTTPS. Only Meerkat fills them with this gateway's own names, and adds what is its own: the chart value that mounts it, and its Internal tag.

Add certificate, Ask cert-manager, on Kubernetes only, has the gateway ask cert-manager for a certificate carrying the plane's names inside the cluster: the Internal plane's, or the hop from a proxy in front to the Console or the Application. At once when one issuer fits, after picking it when several do; the rest is decided by the gateway. It is greyed elsewhere, with the reason - a plane the gateway serves itself gets its public certificate from an authority, an import or the file system. See Asked of cert-manager.

Add certificate, From the file system lists what the runtime mounted in the container - a Kubernetes Secret, a Swarm secret, a compose volume - with the key found beside each certificate. Only the paths are kept, and a renewal written into the files is served on its own. See A certificate from the file system.

The line under a certificate answers will this work, never here is a status code:

Two more warnings appear where they matter: a self-signed badge (nobody vouches for it but itself), and No intermediate - a chain that works in curl and fails in a browser that has never met the issuer.

Adding a certificate

Each plane's Add certificate menu offers what fits that plane and its mode, and places what it adds on that plane:

The entries:

1. Generate a self-signed one - the names (separated by spaces or commas: host names, a wildcard, IP addresses), organisation, key type (ECDSA P-256 or P-384, RSA 2048 or 4096) and validity in days. Good for a lab, and browsers will warn. localhost also carries 127.0.0.1 and ::1.
2. Import a PEM pair - the certificate (then its intermediates) and its private key: paste them, choose the files, or drop them on the dialog. Each file goes where it belongs, by what it holds.
3. Import a keystore - a .p12 / .pfx, chosen or dropped, and its password.
4. Create a signing request - the names and the key, for your own authority. The line then says Awaiting signature; when the answer comes back, Adopt pastes it in, and the certificate can be placed.
5. Ask followed by an authority's name - one entry per ACME authority set up (see below). Host names only: no wildcard and no IP address, since the authority checks each name by connecting to it on port 443. The line names its authority; added from a plane's menu, it is asked at once.

Two certificates for one name

Placing a certificate on a plane where another one already answers for one of its names asks first: it names the one in the way, and Replace takes that one off the plane - it is kept, under Unassigned certificates when it is on no other plane. When the one replaced carried names the new one does not, the question says which names stop being served over HTTPS there.

Renewing is the same gesture: add the new certificate to the plane, replace. The old one is kept until you delete it.

A client that sends no server name - one that reached the gateway by its IP address - receives the oldest certificate served on that plane.

Deleting - the bin on the only plane a certificate is on, or on the Unassigned certificates card - destroys the private key. When the certificate is served, the question says which plane goes back to plain HTTP.

On a laptop or in a lab, the On a local machine button opens the steps to a certificate browsers trust without warning: the hosts file, a local authority (mkcert), one certificate for every name, then Import - see TLS and certificates. The drawer ends on where the certificate goes, one or the other: imported on a plane served by Meerkat, the gateway presents it; set on a proxy in front, the plane says A proxy in front and declares the names.

HTTP and HTTPS ports

The two ports on the right of a tab's first line are not two switches. HTTPS has none: it is a state, shown by its lock - closed, in the primary colour, when a certificate serves HTTPS on the plane; open and grey otherwise. It opens with a certificate placed on the plane and closes when the last one is removed. HTTP:<port> has a switch, on each of the three tabs, and switching it asks first: Apply confirms.

HTTP switched off does not stop the port. It listens on 127.0.0.1 only: out of the network's reach, it still answers a kubectl port-forward - the way in to repair a broken certificate - and the health check the image runs on itself (meerkat health). See Switching the plain port off.

Two rules keep every plane reachable:

• HTTP goes off only while a certificate serves HTTPS on the plane. Otherwise the switch goes back, with Add a certificate first: with HTTP off, HTTPS is the only way in.
• The last certificate stays while HTTP is off. Its bin then says Switch HTTP on before removing the last certificate: nothing else would answer., and removes nothing.

On the Console tab, each port also says who calls it, live and pooled across the gateway's replicas: Receiving, from 10.42.1.178 when something called it in the last 30 seconds - the address the connection comes from, a proxy in front or the browser itself - or Nothing in the last 30 s. Health checks are not counted. The door in use is not switched off:

• clicking HTTP while this page or a proxy comes through HTTP shows Access the console through HTTPS:19443 before switching HTTP off., with the port the world reaches, and nothing changes;
• removing the console's last certificate while this page or a proxy comes through HTTPS shows Access the console through HTTP:19090 before removing its last certificate.

The gateway refuses the same through the API. To move a console behind a proxy to HTTPS end to end, in this order:

1. place the certificate on the Console tab: HTTPS opens;
2. point the proxy at the console's HTTPS port;
3. open the console through it;
4. check that HTTP shows Nothing in the last 30 s;
5. switch HTTP off.

The Application and Internal tabs show no traffic and have no such rule: their HTTP goes off as soon as a certificate serves HTTPS there.

Force HTTPS

In the Application plane, when this gateway serves its names (behind a proxy, redirecting is the proxy's business). Callers arriving on the plain port are sent to HTTPS - those that used a name a certificate placed on the application carries. A service calling the gateway by its cluster name (http://meerkat:8080) stays in the clear: sent to HTTPS it would meet a certificate for another name, from an authority it does not know, and stop working. The console is never forced, and neither is the liveness probe. If every certificate expires, the redirect stands itself down and says so, rather than sending callers to a door none of them will open.

The switch is there, greyed while the application's HTTPS door is not open - no certificate is served on the application yet - with a line saying so. HSTS duration sits under it, active once HTTPS is forced: forcing HTTPS also sends HSTS, so browsers stop sending even the first request in clear - the one a redirect cannot protect. A day by default, up to two years. Never sent to localhost or an IP address; a route or a service that sets its own value keeps it. See TLS.

Who serves the public names

The Console and Application tabs each say first HTTPS served by: Meerkat or A proxy in front. The toggle only proposes: picking the other mode shows Apply and Cancel, and Apply asks for a confirmation before it saves. Switching keeps the names and the certificates: a certificate that does not fit the new mode stays placed, greyed and marked Inactive in this mode, and serves again the moment the plane switches back. Each change travels with a configuration export and reaches every node.

A change of the Console plane that would sign you out is refused. When you reach the console through a proxy that tells Meerkat the browser used HTTPS, a Console plane that no longer believes that proxy would see your own session as plain http - its cookie would no longer come back - and sign you out. The gateway refuses the save and says why: keep A proxy in front, or open the console on its own HTTPS port first.

Public names are the full names browsers reach the plane by, one each. Type a name and press Enter, a space or a comma; a list pasted in one go becomes one chip per name, and the cross of a chip takes it away; each change is saved at once. A name refused says why: a scheme, a port, a path or an IP address has no place there, and neither has a wildcard - a certificate may carry *.acme.example, a declared name may not, since it would vouch for every name under it. A name belongs to one plane only. On the Application, the first name is the one mailed links and absolute addresses are written with when no request says which.

Meerkat. The gateway presents the names itself, with the certificates placed on the plane. A name added has to be covered by one of them, or it is refused (no certificate placed on the application covers ...): place the certificate first, then declare the name. Names kept through a switch from a proxy, that nothing placed covers, stay listed with a warning - browsers will refuse their HTTPS until a certificate for them is placed. Once names are declared, nobody's X-Forwarded-For is believed on the plane: nothing stands in front, so a peer that writes one is a caller choosing its own address.

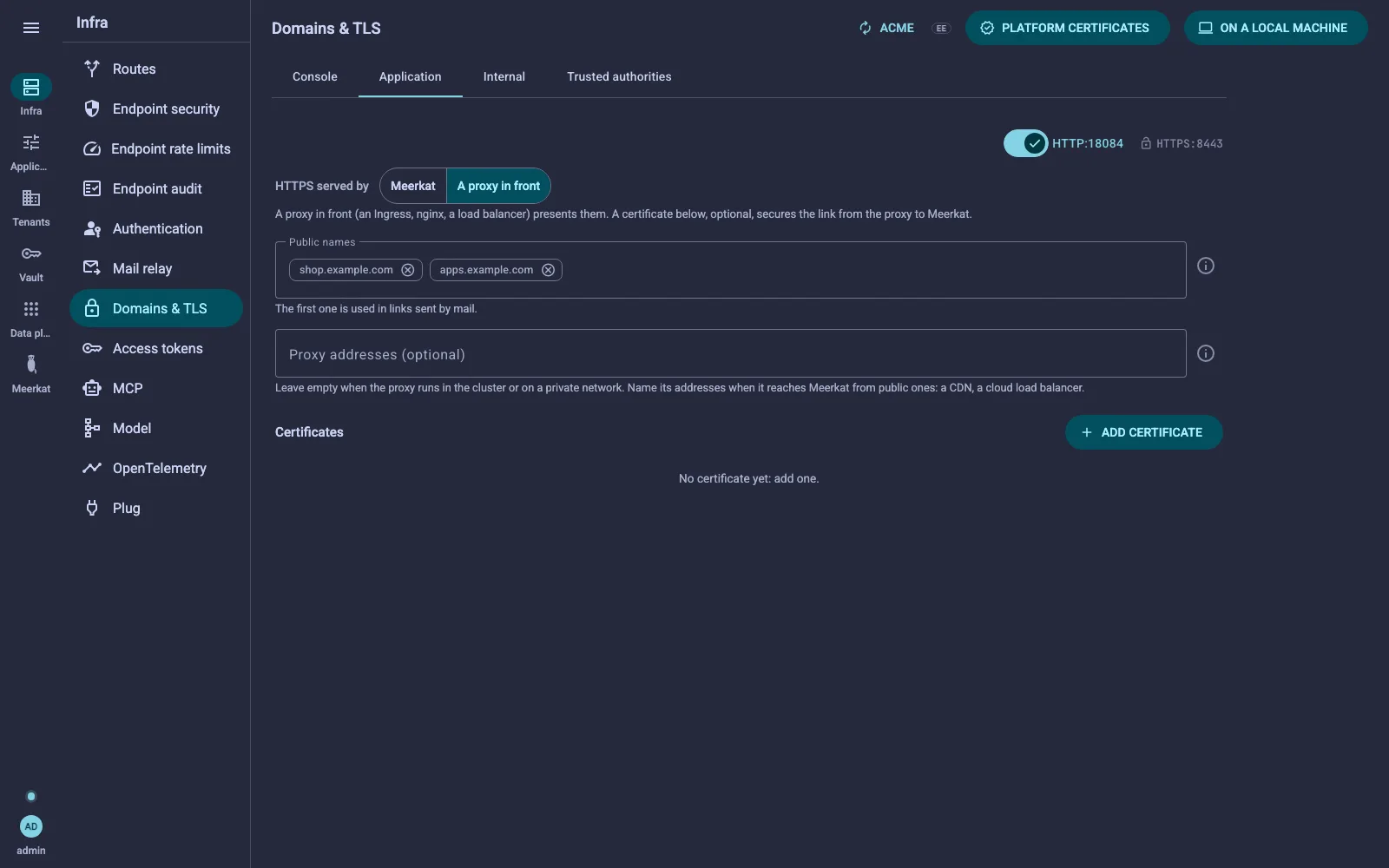

A proxy in front. An Ingress, nginx or a cloud load balancer serves the names over HTTPS, and the gateway knows a request for one of them reached the browser over HTTPS without trusting a header: its cookies are Secure, its links https://, and a mail asked under it carries a link back to it rather than a code. These names open no HTTPS door of the gateway, ask no authority, and are never redirected by Force HTTPS nor sent HSTS: the proxy keeps those promises.

A certificate placed on such a plane is optional, and encrypts the hop from the proxy to the gateway - an Ingress with a backend in HTTPS, an OpenShift Route in reencrypt. For that hop to be encrypted, the proxy itself must be pointed at the plane's HTTPS port and speak TLS to it: an Ingress that still targets the HTTP port leaves the hop in clear, and the certificate unused - on the Console, the line under each port shows which one the proxy really calls. It carries the plane's names inside the runtime, never the public ones, and the tab lists them as its Internal names, ticking those a served certificate covers: on Kubernetes, the chart's Service in its four forms (<release>-meerkat for the application, <release>-meerkat-admin for the console); on Swarm or compose, the one service name every port shares. When the runtime says nothing, the plane serves every placed certificate except those covering its public names, which are the proxy's to present. Add certificate offers there a PEM pair, the file system, a keystore and Ask cert-manager.

Proxy addresses (optional) says whose X-Forwarded-For and X-Forwarded-Proto the plane believes:

• empty - the default, for a proxy that runs in the cluster or on a private network: the loopback and the private ranges are believed, which is where an Ingress controller or a load balancer inside the cluster comes from;
• its addresses - CIDR ranges or single addresses, typed as chips, for a proxy that reaches Meerkat from public addresses: a CDN, or a cloud load balancer such as Google Cloud's (130.211.0.0/22, 35.191.0.0/16). They replace the private ranges: name a private proxy too if one stands between.

A plane nobody said anything about keeps the old rule, the private ranges. See Behind a proxy or a load balancer and Behind a proxy that terminates TLS.

ACME authorities

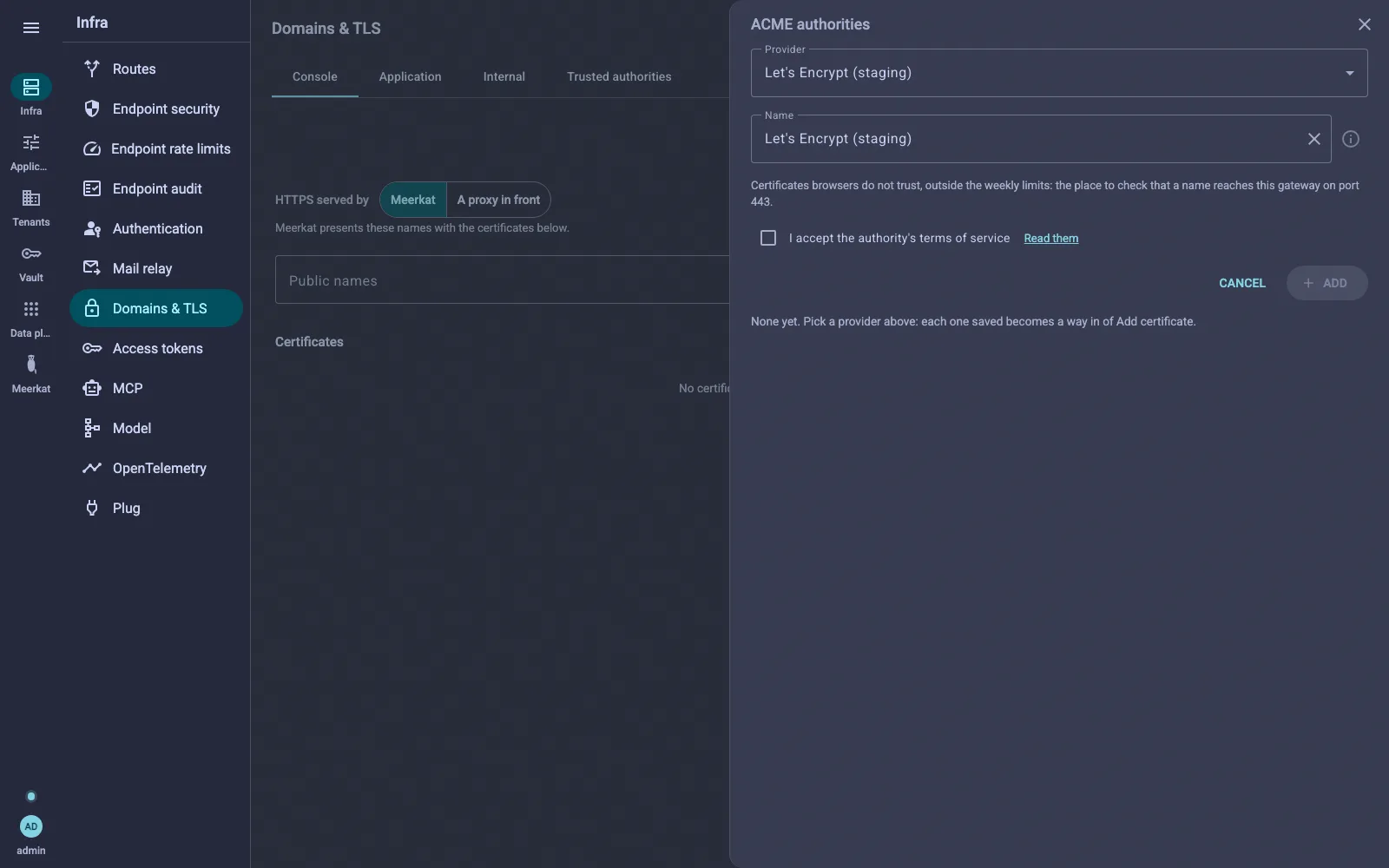

The ACME button, in the banner beside On a local machine, opens a drawer: a form at the top, the authorities already set up underneath - each with what it is asked for. There are a handful, never fifty, and each one saved becomes an Ask entry of the Add certificate menu of a Console or Application plane Meerkat serves itself.

Pick a provider: the form shows only what that one uses.

Saving asks the authority's directory whether it answers: a wrong URL or an unreachable authority is reported at once. No account is opened yet - that waits for the first certificate asked. The HMAC key is a secret and goes through the vault. An authority still asked for a certificate cannot be deleted; the refusal names what asks it.

What happens when it is asked

Nothing leaves when an authority is saved. Placing a certificate asked of it on a plane is what sends the request, at once, in the background - and adding it from a plane's menu places it:

1. the first time, an account is opened at the authority (its terms accepted);
2. the certificate is ordered, and the authority asks for proof of each name;
3. it connects to the name on port 443, where the gateway answers its challenge (TLS-ALPN: port 80 stays closed);
4. it signs, the certificate is stored and served at once, and renewed a month before it ends - with nobody touching anything.

The line says Asking the authority... while this runs - a few seconds, the screen refreshes on its own - then shows the certificate's end, or the authority's refusal with a Retry button. The usual refusals are explained: the name does not point here (or is proxied - at Cloudflare it must be DNS only), port 443 does not reach the gateway, a CAA record reserves the domain for another authority, the rate limit is reached.

Expiry does not rely on the authority's e-mails - Let's Encrypt stopped sending them in 2025: the daily digest names an automatic certificate that enters its window, which means its renewal is failing.

Trusted authorities

The last tab, Trusted authorities, lists what the gateway accepts when it calls an upstream in HTTPS, beyond the public authorities. Add authority opens a dialog: a name, and the authority's certificate - choose its file, drop it on the dialog, or paste it.

On Kubernetes or OpenShift, From the cluster lists the authorities the cluster publishes, found rather than named: the service CA OpenShift mounts in every pod, the cert-manager issuers that sign with an authority of their own, the trust-manager bundles that reach the gateway's namespace, and the cluster's own CA (which signs the API server, rarely the services). Under each, what it signs here: the routes in https the gateway refuses today that it would unblock, and the services the platform records it signed. The one that unblocks a refused route is picked in advance; a refused route signed by an authority the cluster does not publish is named, to import by hand. Pick one or several and Trust. The dialog then offers the routes still in http whose service now answers in https - tried by the gateway, with the port and the name the certificate carries - each to Switch to HTTPS or leave. When the cluster publishes none, the dialog says so and shows a cert-manager issuer that would; when a source is there but the chart does not let the gateway read it, the dialog names the value to set. See Found in the cluster.

Each entry shows the certificates it holds and until when. See Calling upstreams in HTTPS.

Traps

• A certificate answers for the names it carries. A browser asking for a name no certificate on that plane carries gets the oldest one, and refuses it.
• A public authority cannot see your private DNS. Use an internal authority for internal names, or import.
• Do not forget the intermediates when importing: the console will tell you, but only after the fact.
• The EAB HMAC key is a secret and goes through the vault like every other one.
